Classic Coating Appearance with Distinctive LED

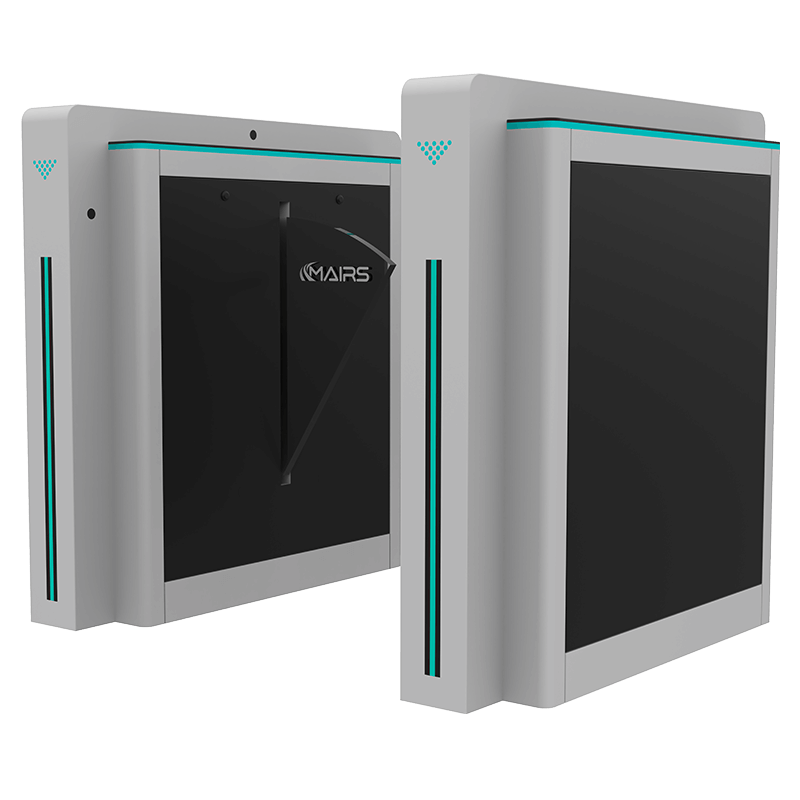

Coating Flap Turnstile MT-KQ200

The coating series flap barrier turnstile is the most reliable and safe access control solution, widely used in subway stations and building lobbies due to its stable performance and fast travel speed. This coating series flap barrier gate features a unique design, combining fashionable baked paint in white and black, surrounded by dazzling and colorful LED light strips, making it easy to match in any modern aesthetic architectural venue.

Get A Quote
Share:

Product Parameters:

  • Size: 1000*300*980 mm (can be customized)
  • Lane width: 550 mm (can be customized)
  • Passing speed: 40 person/min
  • Power supply: 110V/220V 50/60Hz
  • Weight: 85 kg
  • Open Signal: Dry Contact/ Relay
  • Reliability of the mechanism: 3 million, no-fault
  • Operation way: Semi-automatic
  • Solenoid valve: DC24V ±5ï¼…
  • Arm length: 510 mm
  • Direction of rotation: Bidirectional/single direction
  • Operational voltage: DC 24V ±5%
  • Voltage of indicator light: DC12V ±5ï¼…(standard)
  • Working temperature: -30℃～60℃
  • Humidity: 5%～90%
  • Waterproof: IP56
  • Time needed for opening: 0.2 s
  • Working environment: Indoor or outdoor
coating series flap barrier turnstile

High barrier and disabled access

Designed by MairsTurnstile

We personally design and manufacture, rejecting mediocrity

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

MairsTurnstile

3D rendering View clearly from various angles.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

Access control & recognition solution

Support OEM and ODM. Support third-party biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. can easily integrate with third-party access control systems to achieve various functions. We can also integrate corresponding hardware facilities to achieve corresponding functions based on your project’s actual needs or software requirements.

Coating series flap barrier turnstile MT-KQ200

Card Reader

The coating series flap turnstile can be easily integrated with your card reader, and the installation panel can be customized according to the size of your card reader.

Face Recognition

The coating series flap turnstile can also be easily integrated with your facial recognition, and the installation panel can be customized according to the size of your facial recognition terminal.

QR Code

The coating series flap turnstile can be easily integrated with your QR code system.

Designed by MairsTurnstile

Diversified styles to adapt to various environments

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.

MairsTurnstile

Layout and Drawings Intuitive experience.

We provide detailed layouts and drawings, We can also create a rendering for you within a few minutes based on your actual scenario, Letting you have a more intuitive experience of the installation effect. As well as installation drawings. Let you have no worries about installation.

MairsTurnstile

Different scenarios, different style combinations.

Various Types Of Unique Designs To Meet The Needs Of Different Venues

Two Standard Passage

The normal passage width is 600mm, and the standard height is 900mm. Of course, we can customize it according to your actual situation.

900mm Wide Handicap Passage

The width range of tempered glass baffle is 600 ~900mm, Different widths meet your different needs in different places, especially in places where people with disabilities need to pass through.

Guardrail + Standard Passage + Handicap Passage

The coating series flap barrier turnstile can be paired with guardrails, disabled access, or other types of meteor turnstiles.
MairsTurnstile

Coating Series Turnstile Features

Classic combination of black & white coating, unique butterfly design, different from others

Column indicator

Adopt integrated design, easy disassembly and assembly, soft lighting, light color can be switched according to demand.
Unique design RGB indicator light, 3 colors(red,green,blue), fashion and delicated.

Acrylic baffle

20mm thick acrylic arm with customized glowing logo which is non-breakable and anti-strike

Swipe panel

Anti-scratch acrylic material, highly
integrated and modular, easy to
disassemble and fix the direction

Customized

We can customize according to your actual needs, including logo, size, appearance, material, and color……

MairsTurnstile

Meet other types of turnstiles in Coating series turnstile.

The coating series turnstiles have different styles, achieve different functions, meet the different needs of customers, and can be adapted to different types of places

Designed by Mairs

Swing Turnstile MT-KQ300

Designed by Mairs

Flap Turnstile MT-KQ200

Designed by Mairs

Tripod Turnstile MT-KQ100

Designed by Mairs

Speed Gate MT-KQ306
