Enhanced by meteor elements, unique & distinctive

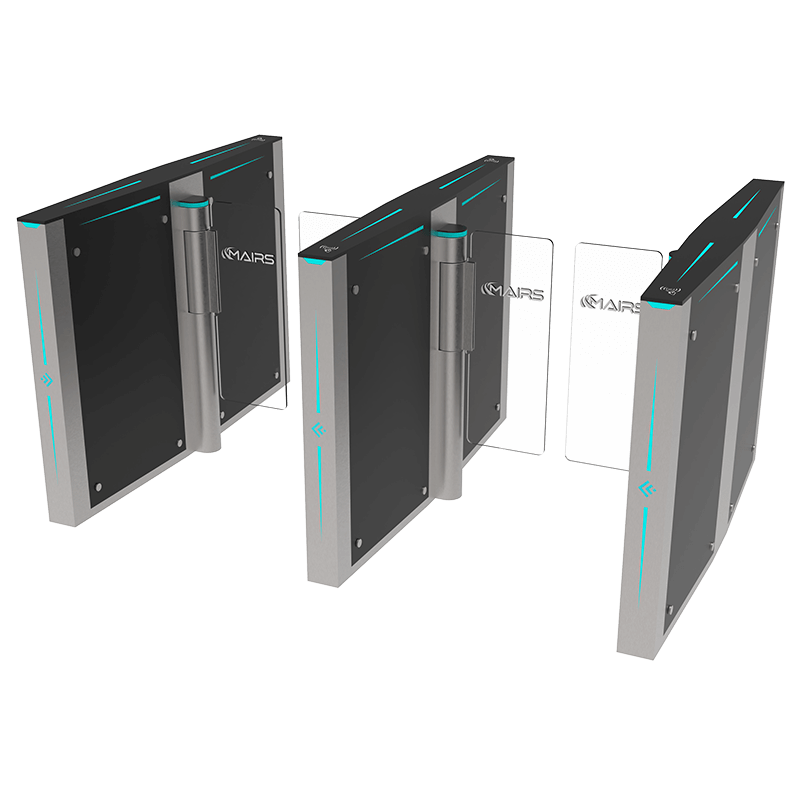

Meteor series Speed Gate MT-LX306

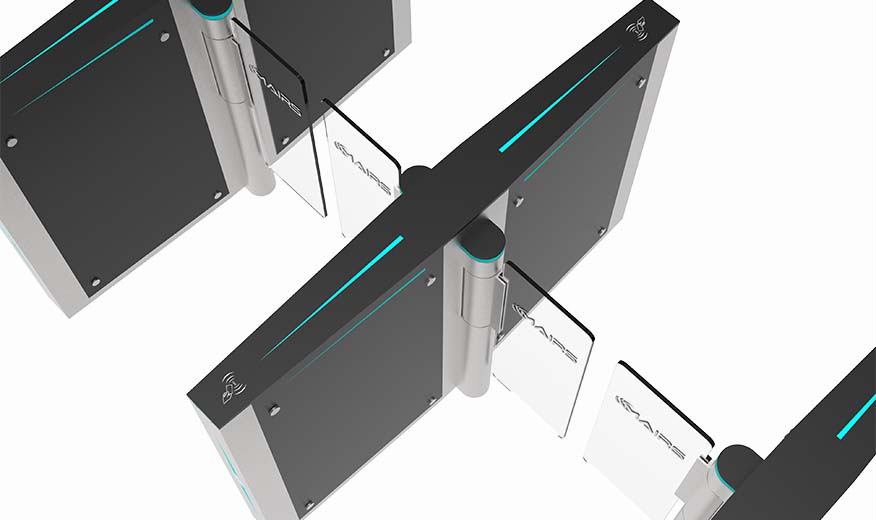

The meteor series speed gate MT-LX306 has a relatively slender appearance, with a top cover made of tempered glass and a combination of black paint and stainless steel. The production process and overall appearance appear high-end and atmospheric. The baffle can be customized according to the actual situation, such as high baffle, widened baffle for disabled people, ordinary baffle, etc

Get A Quote
Share:

Parameters of speed gate:

  • Size: 1400*150*980 mm (can be customized)
  • Lane width: 550 mm (can be customized)
  • Passing speed: 45 person/min
  • Power supply: 110V/220V 50/60Hz
  • Weight: 65 kg
  • Open Signal: Dry Contact/ Relay
  • Reliability of the mechanism: 3 million, no-fault
  • Operation way: Semi-automatic
  • Solenoid valve: DC24V ±5ï¼…
  • Arm length: 510 mm
  • Direction of rotation: Bidirectional/single direction
  • Operational voltage: DC 24V ±5%
  • Voltage of indicator light: DC12V ±5ï¼…(standard)
  • Working temperature: -30℃～60℃
  • Humidity: 5%～90%
  • Waterproof: IP56
  • Time needed for opening: 0.2 s
  • Working environment: Indoor or outdoor

More stable, quieter & wider!

Designed by MairsTurnstile

We personally design and manufacture, rejecting mediocrity

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

MairsTurnstile

3D rendering View clearly from various angles.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

Access control & recognition solution

Support OEM and ODM. Support third-party biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. can easily integrate with third-party access control systems to achieve various functions. We can also integrate corresponding hardware facilities to achieve corresponding functions based on your project’s actual needs or software requirements.

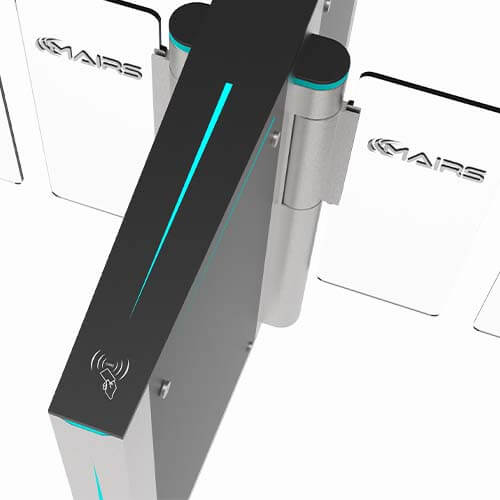

Card Reader

The Meteor series speed gate turnstile can be easily integrated with your card reader, and the installation panel can be customized according to the size of your card reader.

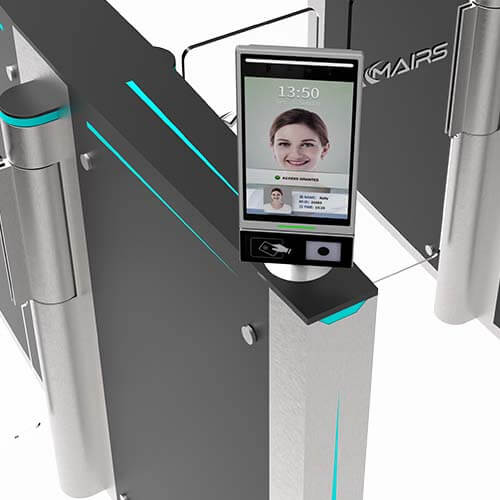

Face Recognition

The Metero series speed gate turnstile can also be easily integrated with your facial recognition, and the installation panel can be customized according to the size of your facial recognition terminal.

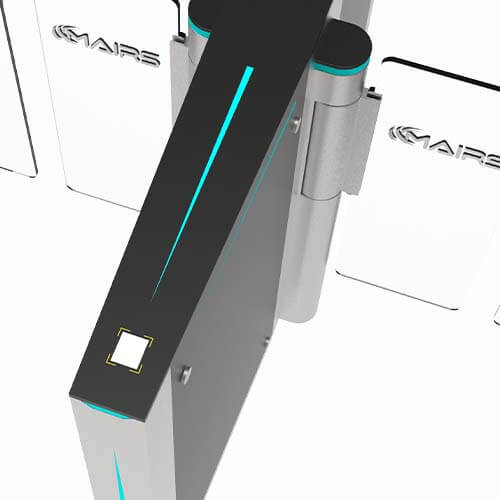

QR Code

The Meteor series speed gate turnstile can be easily integrated with your QR code system.

Designed by Mairs

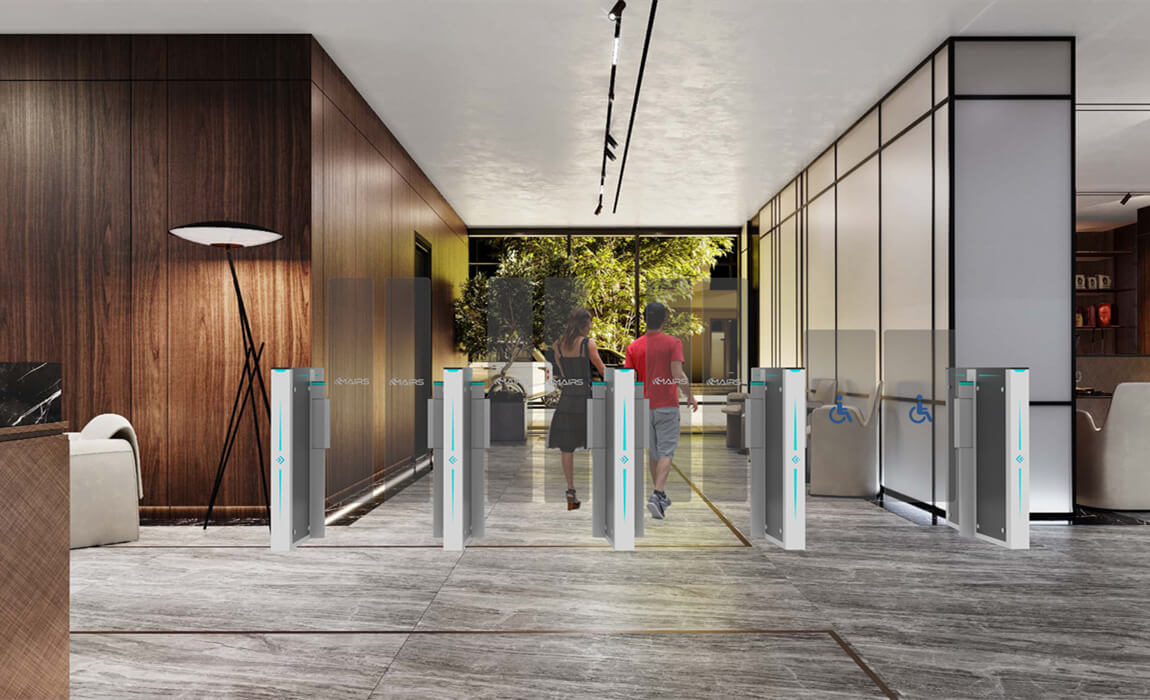

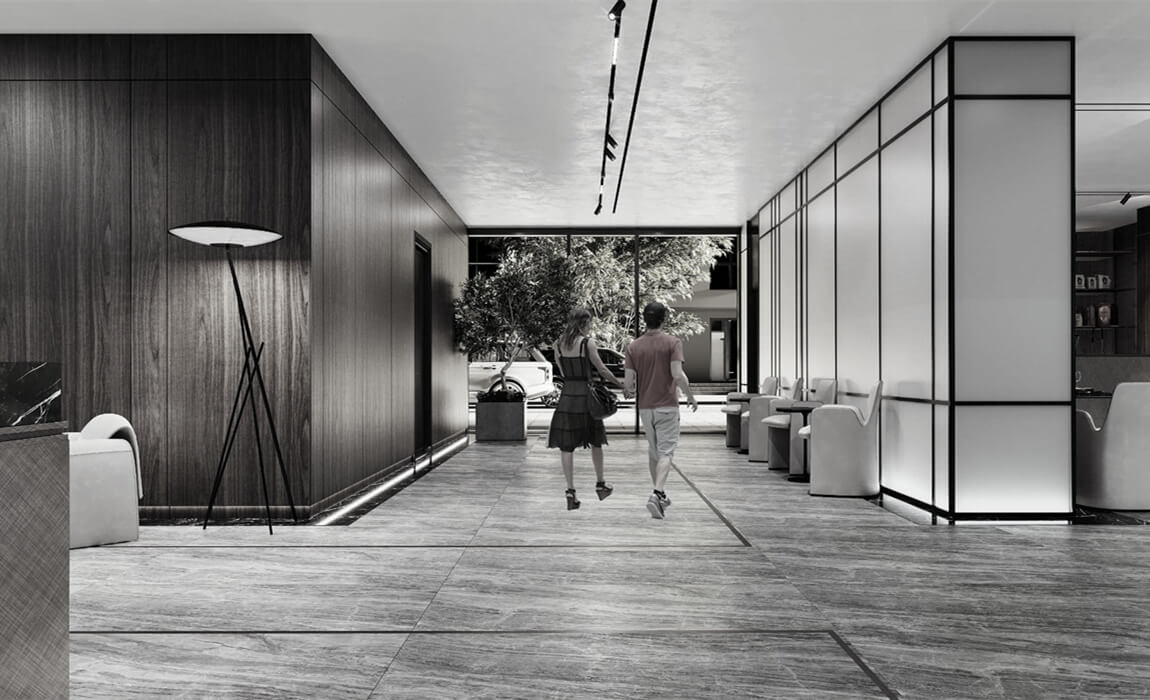

Diversified styles to adapt to various environments

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.

MairsTurnstile

Layout and Drawings Intuitive experience.

We provide detailed layouts and drawings, We can also create a rendering for you within a few minutes based on your actual scenario, Letting you have a more intuitive experience of the installation effect. As well as installation drawings. Let you have no worries about installation.

MairsTurnstile

Different scenarios, different style combinations.

Various Types Of Unique Designs To Meet The Needs Of Different Venues

Standard Passage

The normal passage width is 600mm, and the standard height is 900mm. Of course, we can customize it according to your actual situation.

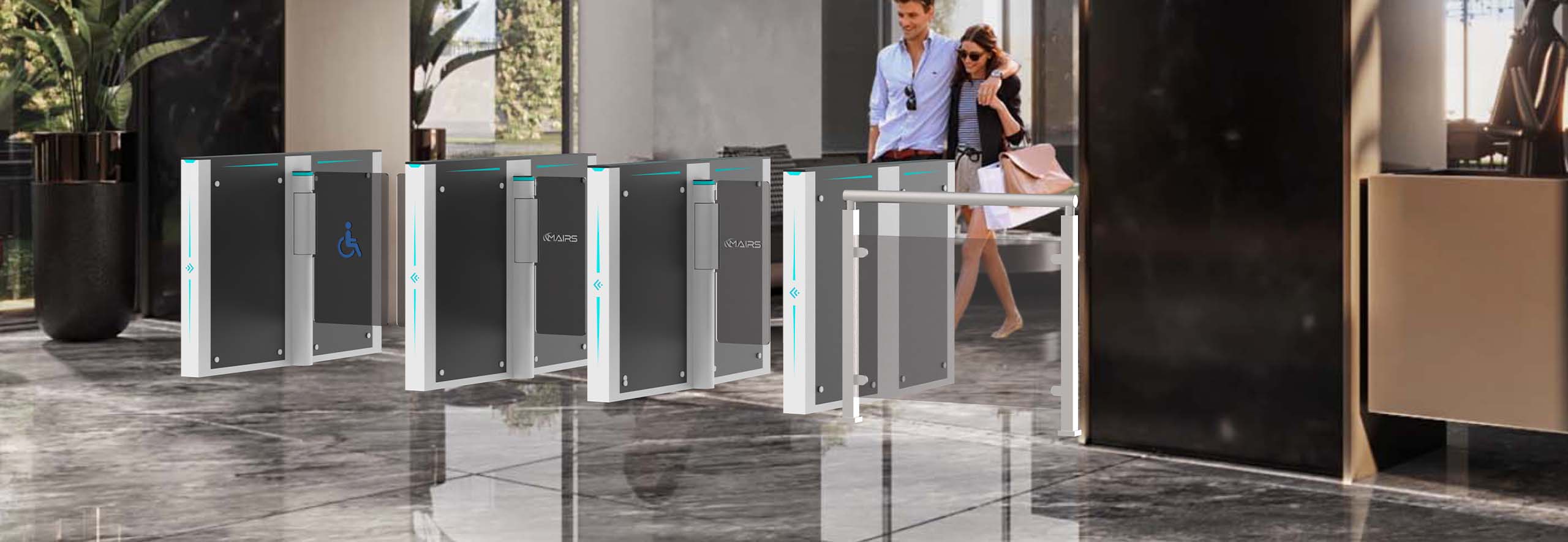

1100mm Wide Handicap Passage

The width range of tempered glass baffle is 600 ~1100mm, Different widths meet your different needs in different places, especially in places where people with disabilities need to pass through.

1800mm High Tempered Glass Baffle

The range of height for tempered glass baffles is 900 ~1800mm. Different heights to meet your different venue needs.
MairsTurnstile

MEteor Series Speed Gate Turnstile Features

Unique meteor element design, colorful, vibrant and high-end atmosphere

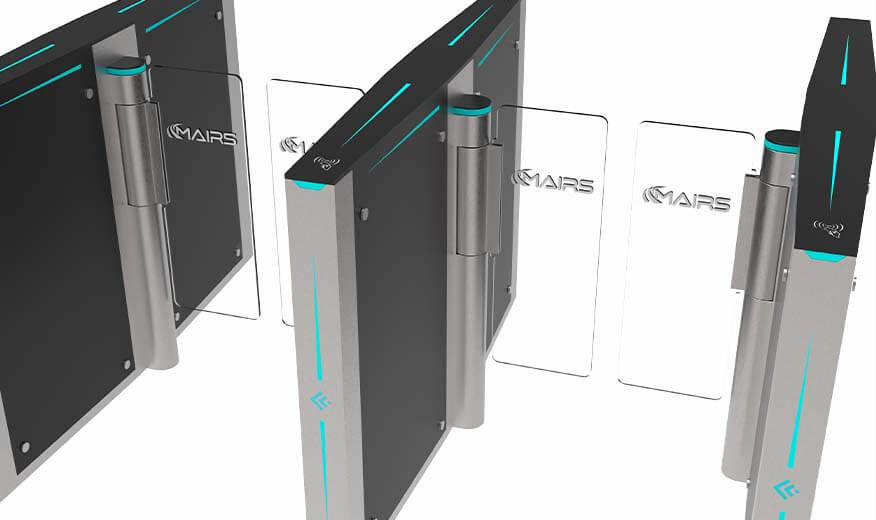

Column indicator

Adopt integrated design, easy disassembly and assembly, soft lighting, light color can be switched according to demand.
Unique design RGB indicator light, 3 colors(red,green,blue), fashion and delicated.

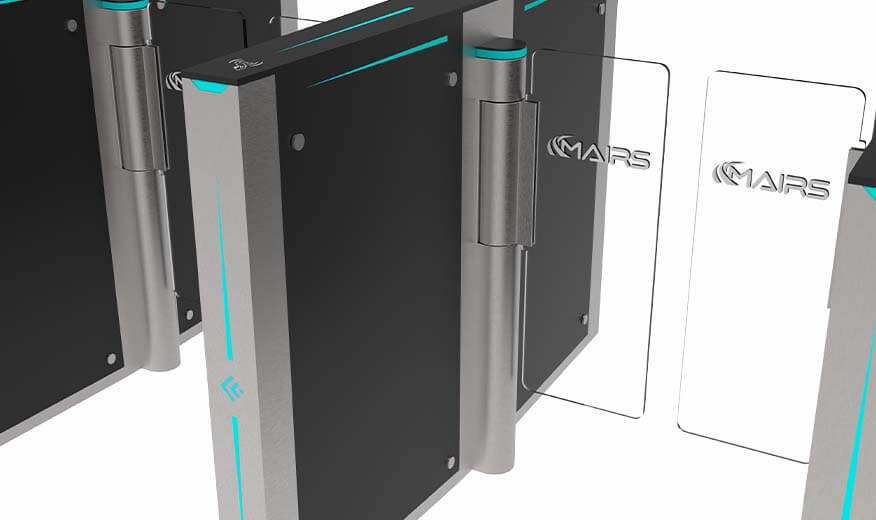

Baffle clip

Welding+screw fixing, double fixation, high quality, high stability.

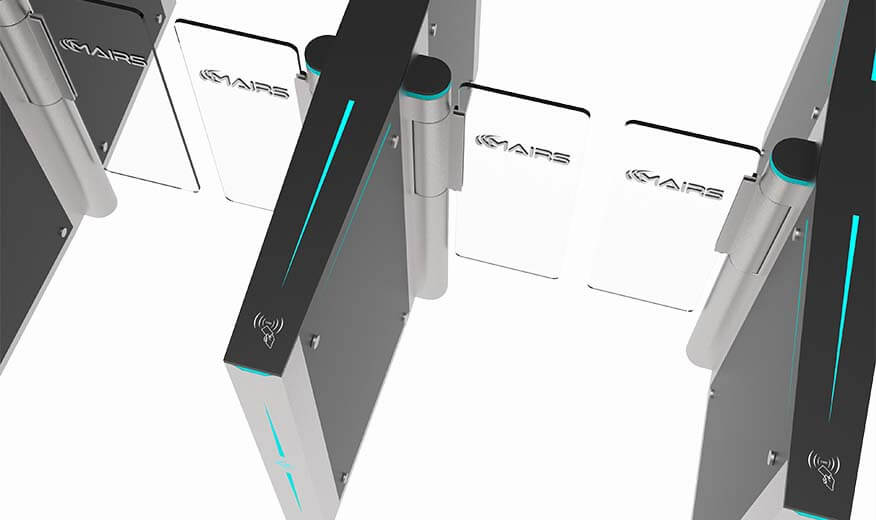

Swipe panel

The top cover is made of high-quality tempered glass, which effectively prevents scratches and can be customized with an integrated card swiping panel.

Customized

We can customize according to your actual needs, including logo, size, appearance, material, and color……

Designed by Mairs

Classic design, suitable for various high-end venues

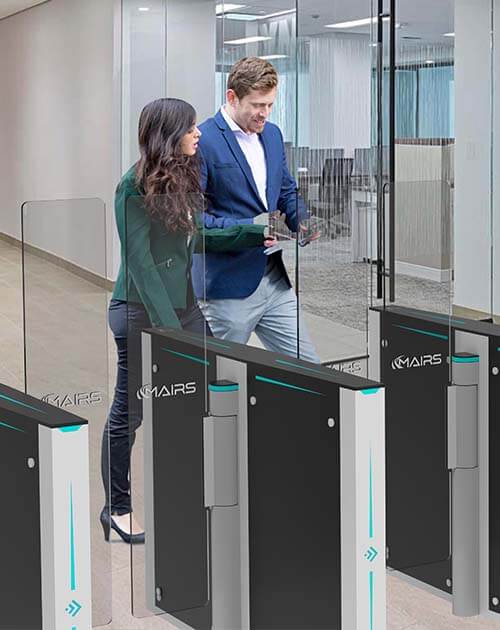

This is a stylish and atmospheric sliding turnstile which designed and produced by MairsTurnstile. It has strong environmental adaptability and can be integrated with various occasions. It is widely used in high-end places such as gyms, sports halls, and office buildings.

Designed by MairsTurnstile

Unique meteor element LED light design

Meteor series turnstile come in three different colors to indicate their working status. This meteor series turnstile combines elements of shooting stars, making the entire product feel colorful and high-end fashion

M Series SlidingTurnstile

Produced by mairs

M Series Flap Barrier

Produced by mairs

M Series Speed Gate

Produced by mairs
MairsTurnstile

Meet other types of turnstiles in MEteor series turnstile.

The Meteor series turnstiles have different styles, achieve different functions, meet the different needs of customers, and can be adapted to different types of places.

Designed by Mairs

Tripod Turnstile

Designed by Mairs

Flap Barrier Turnstile

Designed by Mairs

Sliding Turnstile

Designed by Mairs

Swing Turnstile
