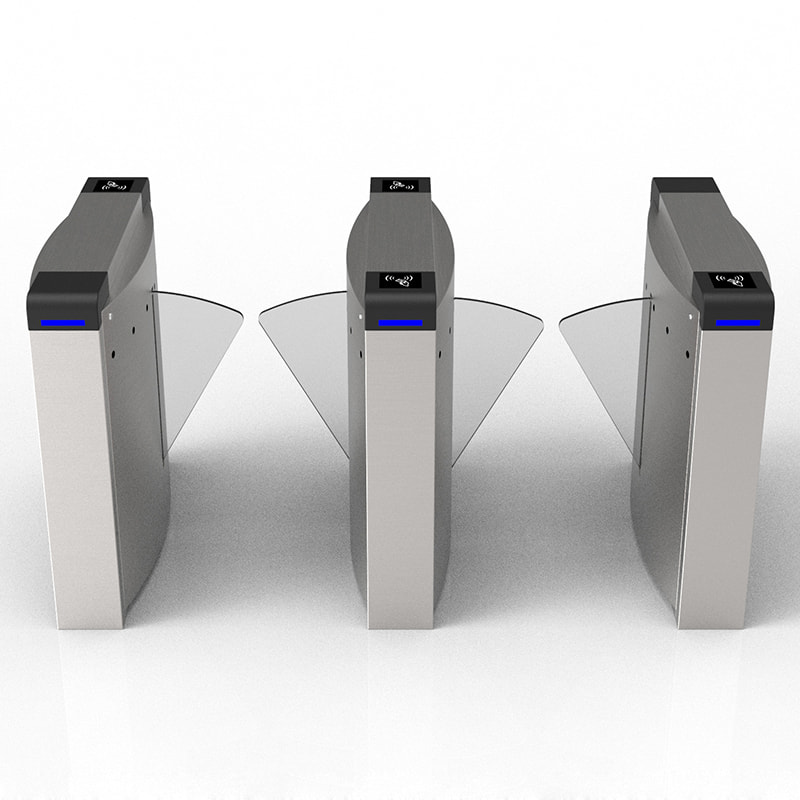

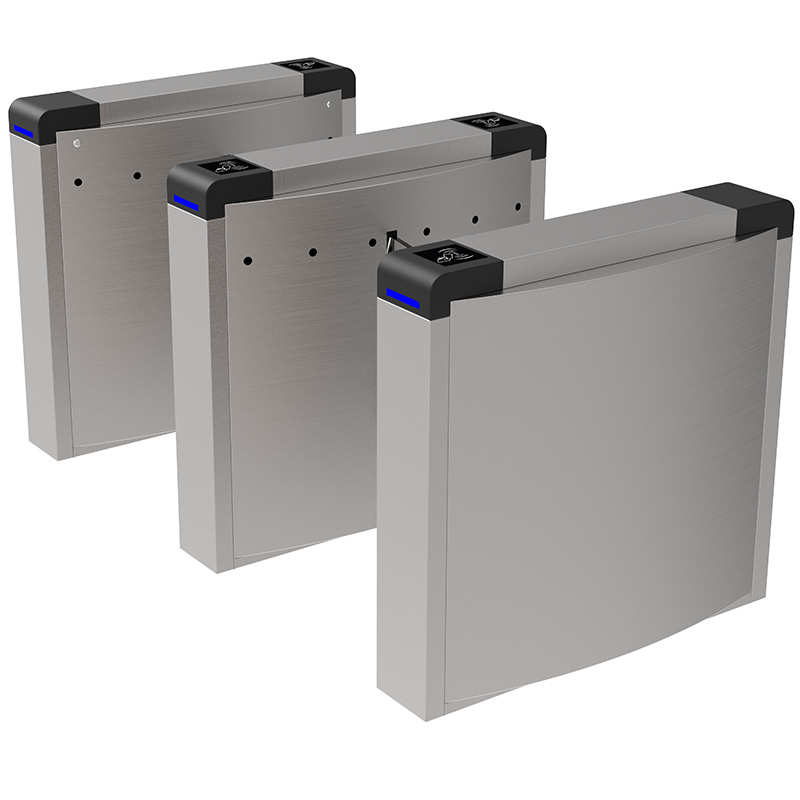

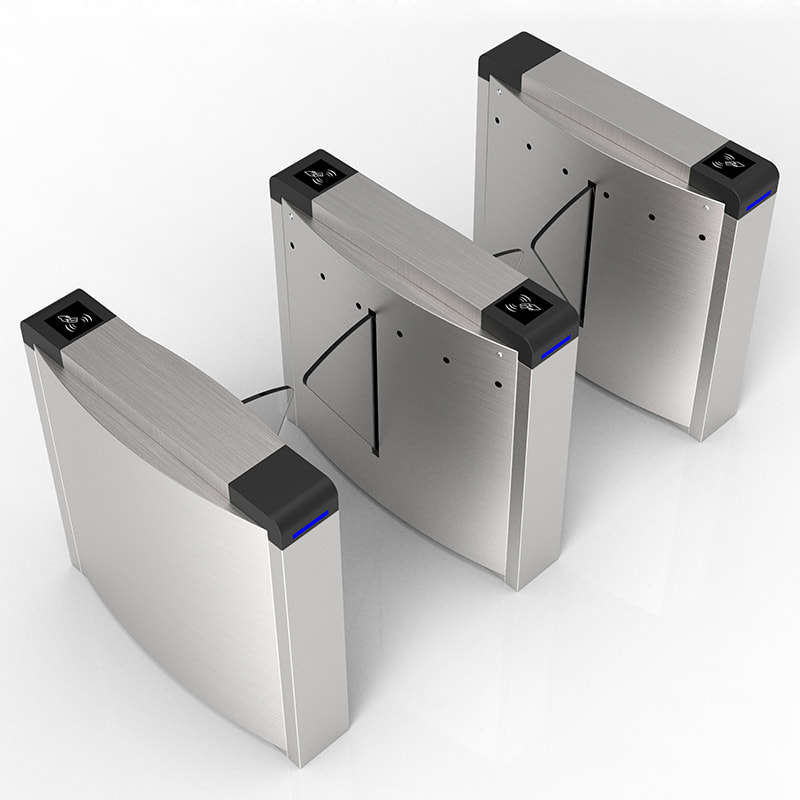

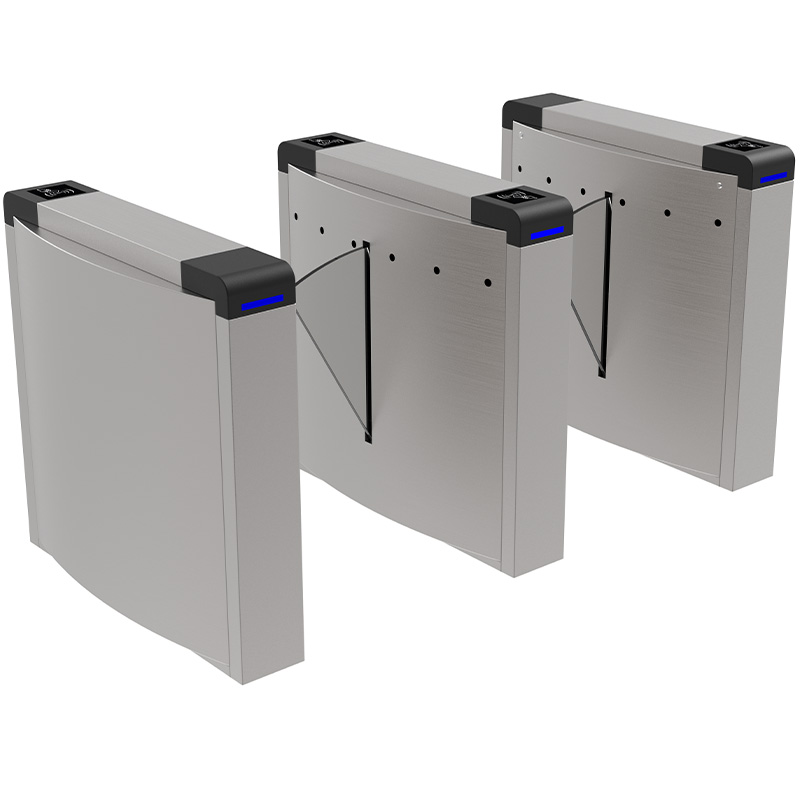

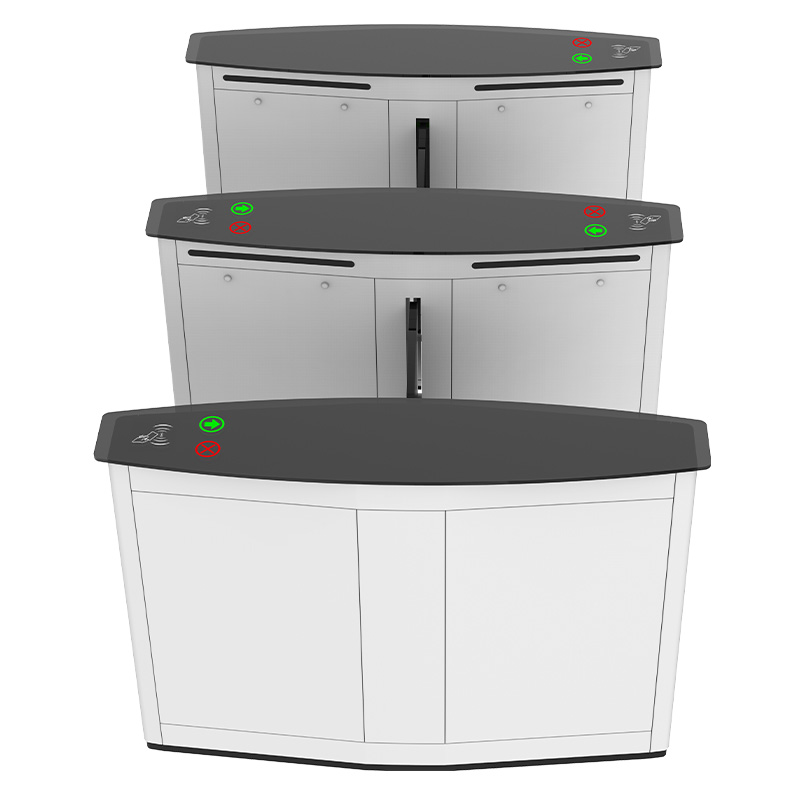

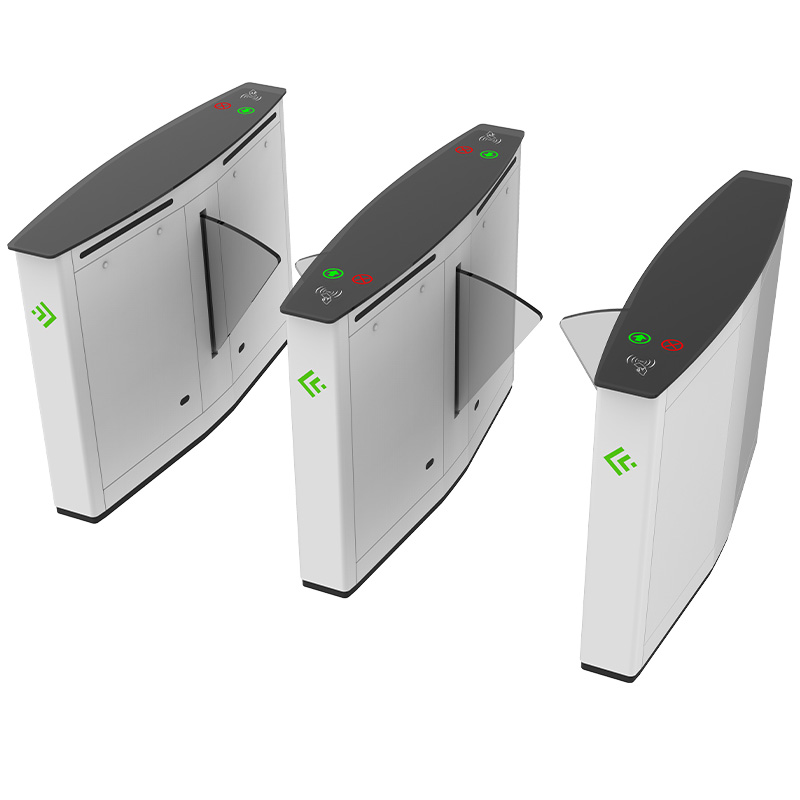

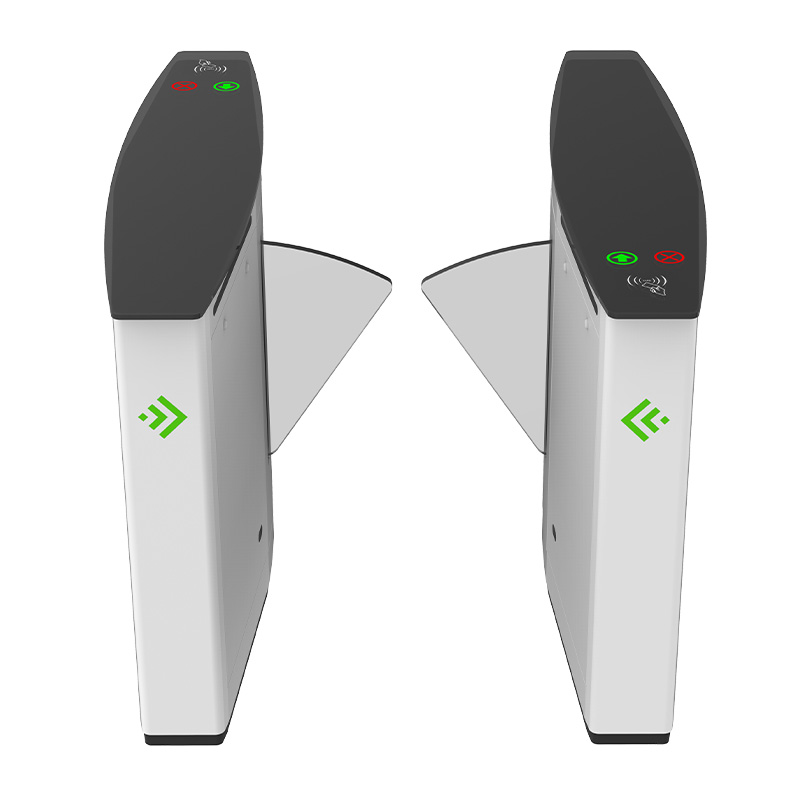

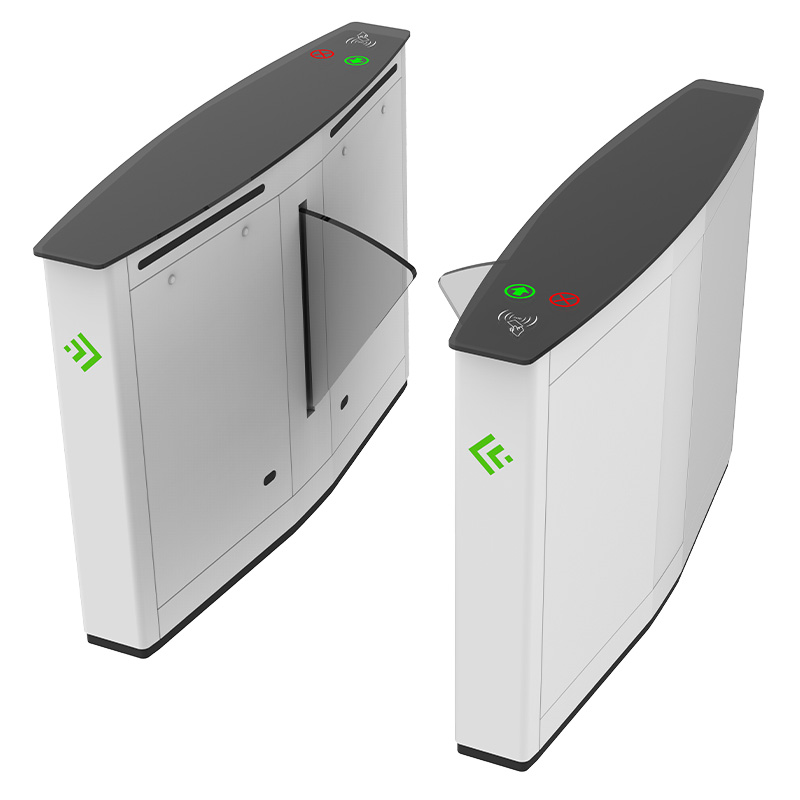

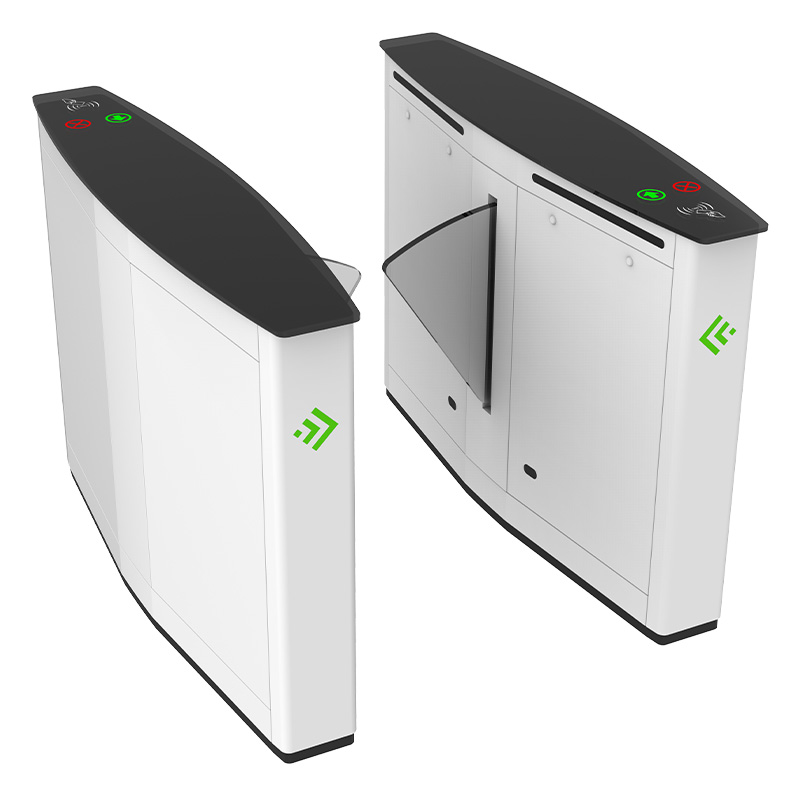

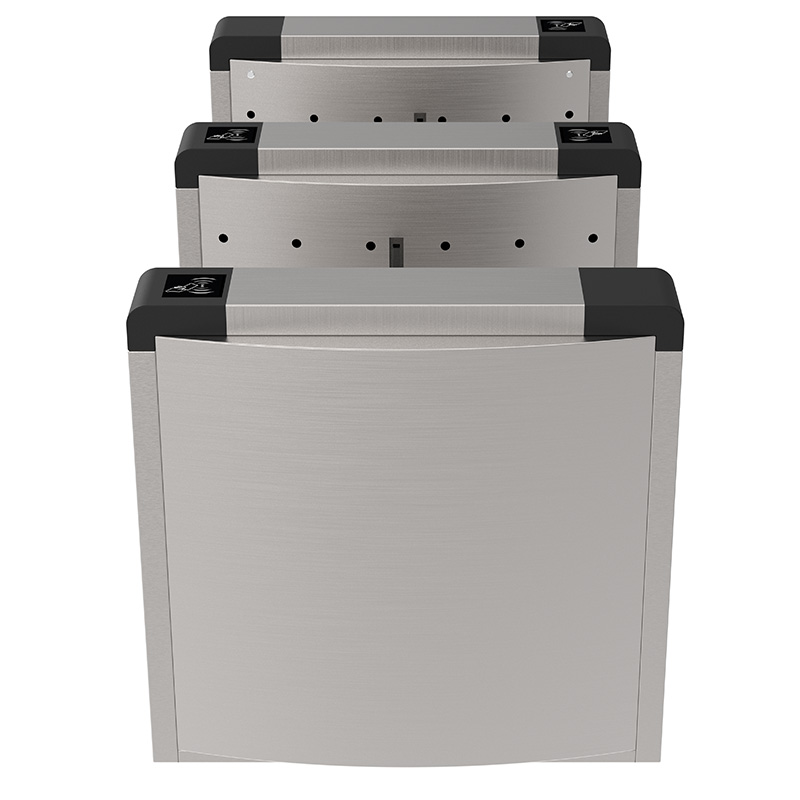

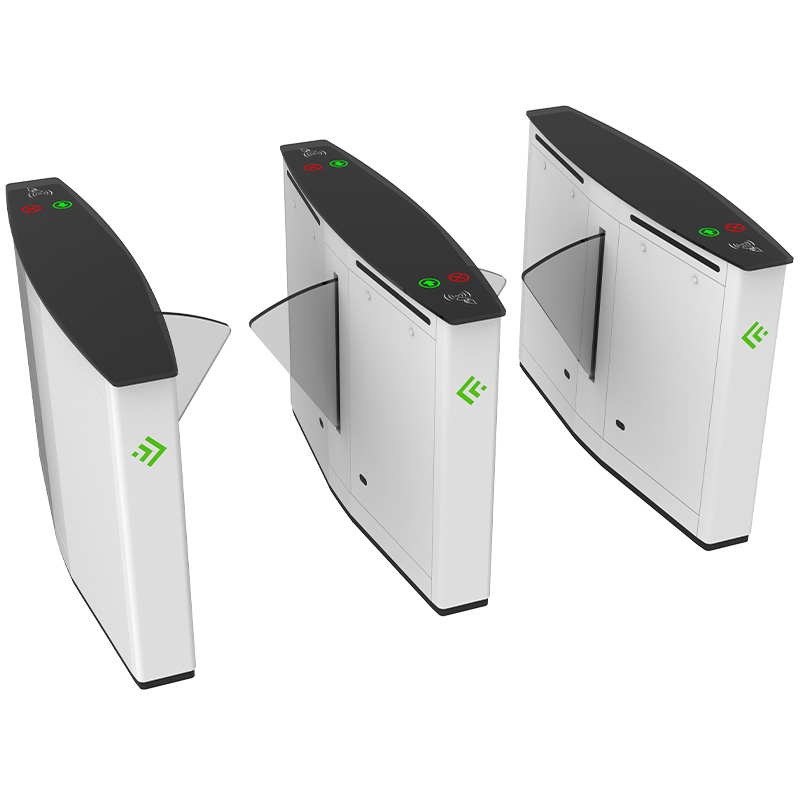

New Flap Barrier Gate Turnstile MT237
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2-year warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the flap barrier gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1000*300*980 mm (can be customized)
2. Lane width: 550 mm
3. Passing speed: 30 person/min
4. Power supply: 110V/220V 50/60Hz
5. DC Brushed Driving Motor
6. Flap barrier gate Driving Motor: DC24V
7. Gate Open Signal: Dry Contact/ Relay
8. With 6pairs of sensors
9. Material: 1.2mm 304 stainless steel and iron with powder-coated
10. Stable Full Height Mechanism
11. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
12. LED lights on arms are available
13. Working Direction: Bidirectional/Single directional
14. Emergency situation: open automatically when the electricity is cut off with a capacitor
15. Humidity: ≤90％
16. Working temperature: -20℃～60℃
17. Communication distance: ≤1200 m
18. Communication interface: RS485
19. Time needed for opening: 0.2 s
20. Working Environment: Indoors
21. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
