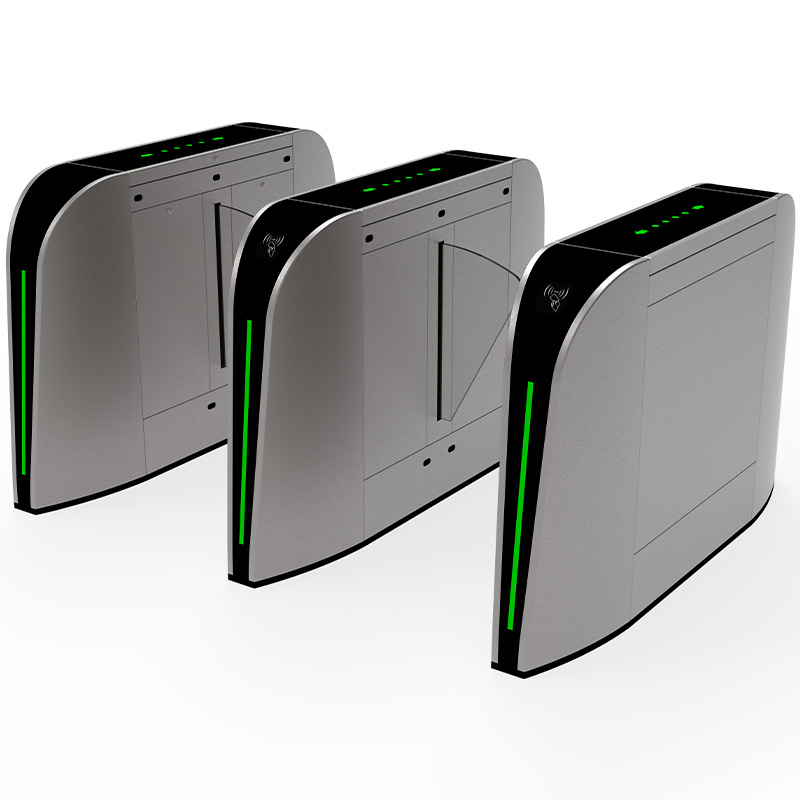

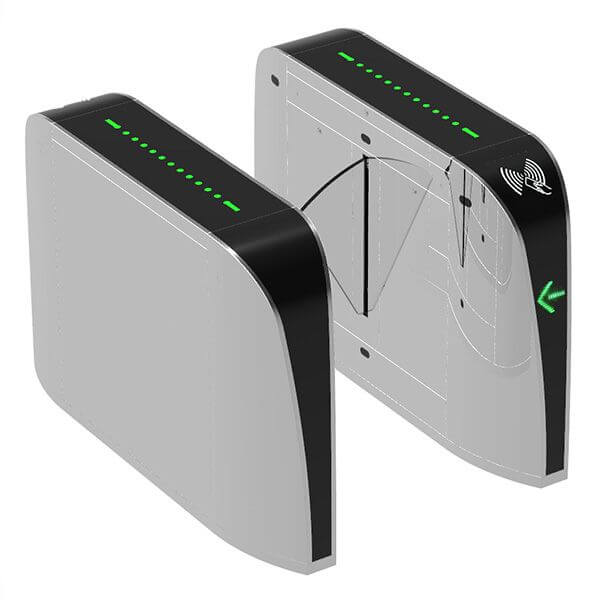

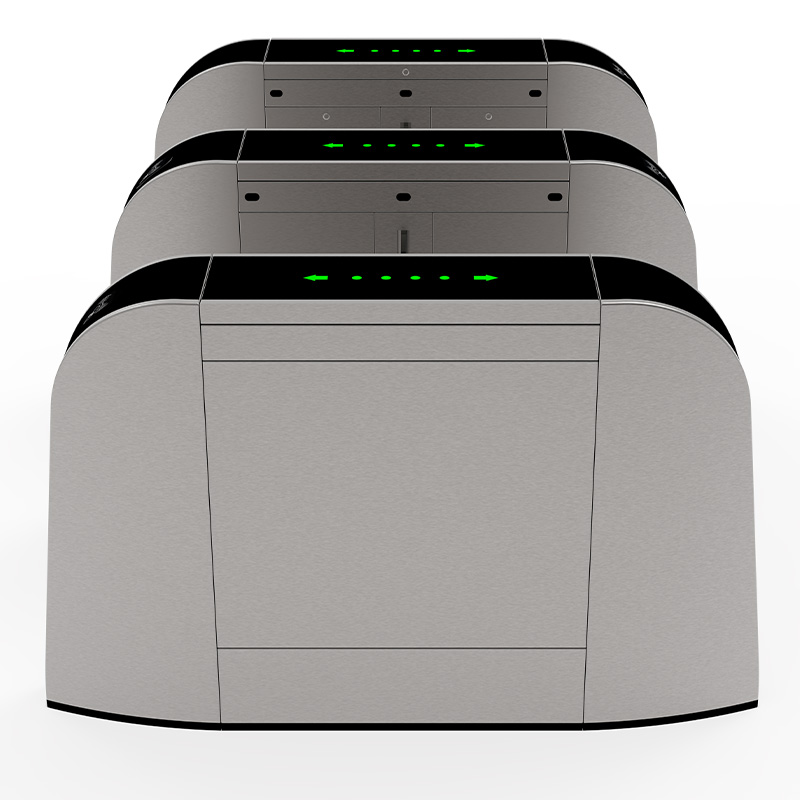

FLAP TURNSTILE FLAP BARRIER GATE MT240
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1400*300*980 mm (can be customized)
2. Lane width: 550 mm (can be customized)
3. Passing speed: 40 person/min
4. Power supply: 110V/220V 50/60Hz
5. Driving Motor: 20W
6. Gate Open Signal: Dry Contact/ Relay
7. Driving Motor: DC24V
8. Weight: 60 kg/pcs
9. Fully 1.2 mm 304 stainless steel and black tempered glass
10. Full Height Mechanism with the self-developed control board
11. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
12. LED on arms is available
14. Working Direction: Bidirectional/Single directional
15. Emergency situation: open automatically when the electricity is cut off with a capacitor
16. Humidity: ≤90％
17. Working temperature: -20℃～60℃
18. Communication distance: ≤1200 m
19. Communication interface: RS485
20. Blue PC arms are optional
21. Time needed for opening: 0.2 s
22. Working environment: Indoors
23. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
