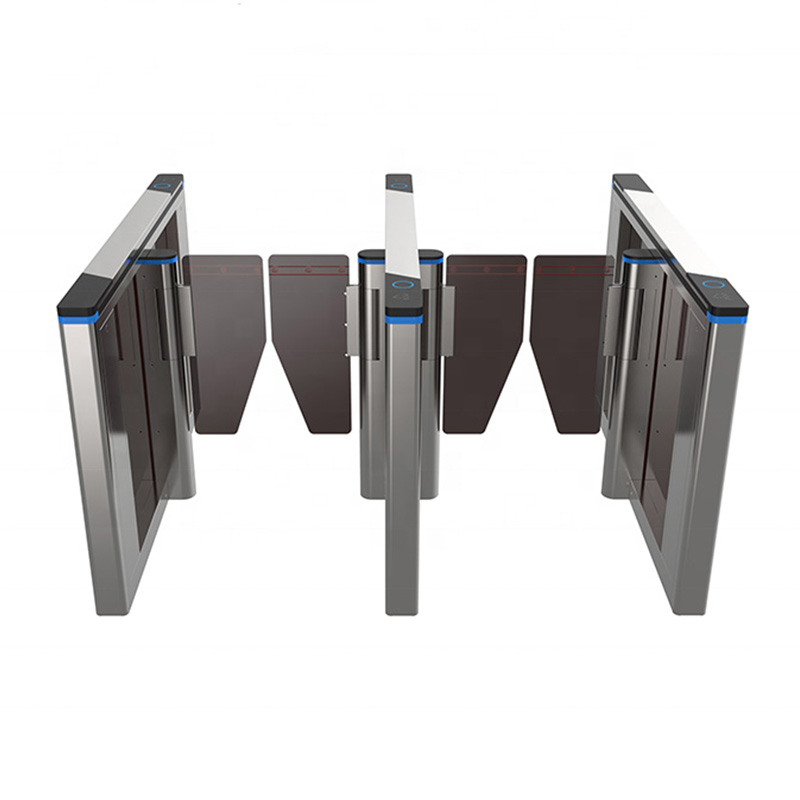

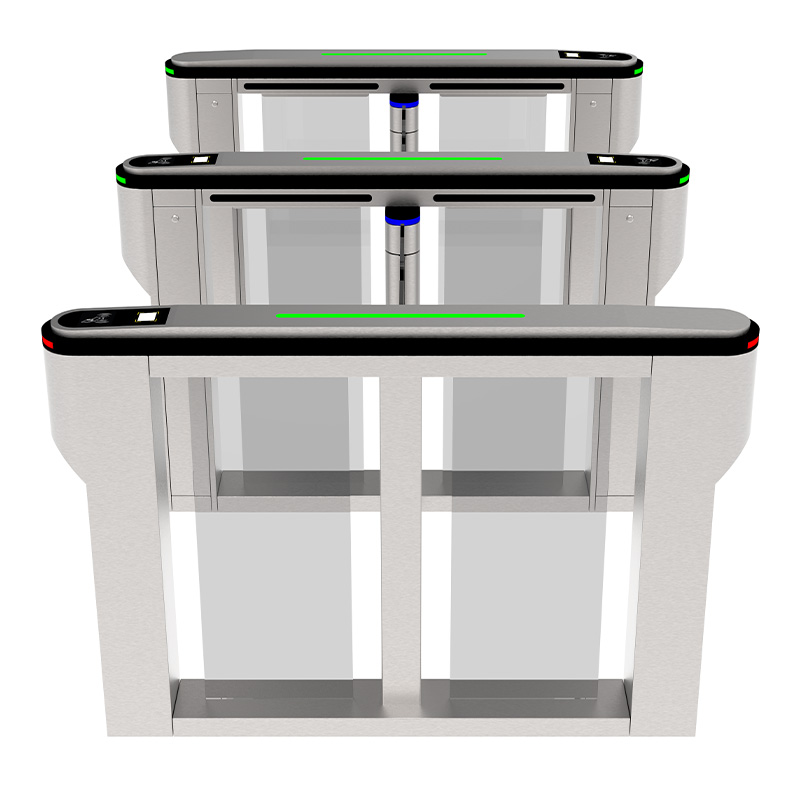

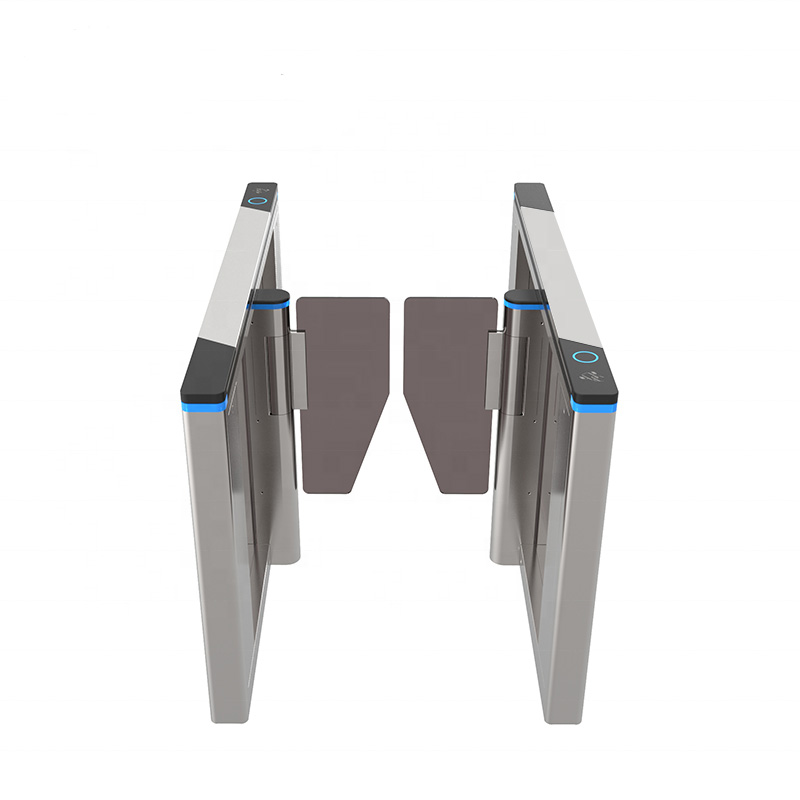

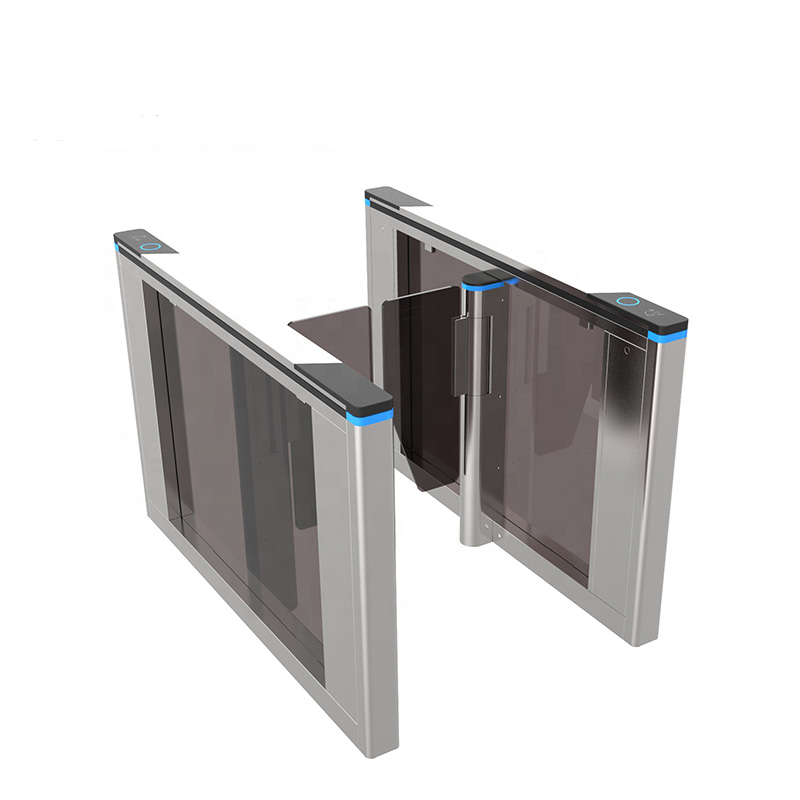

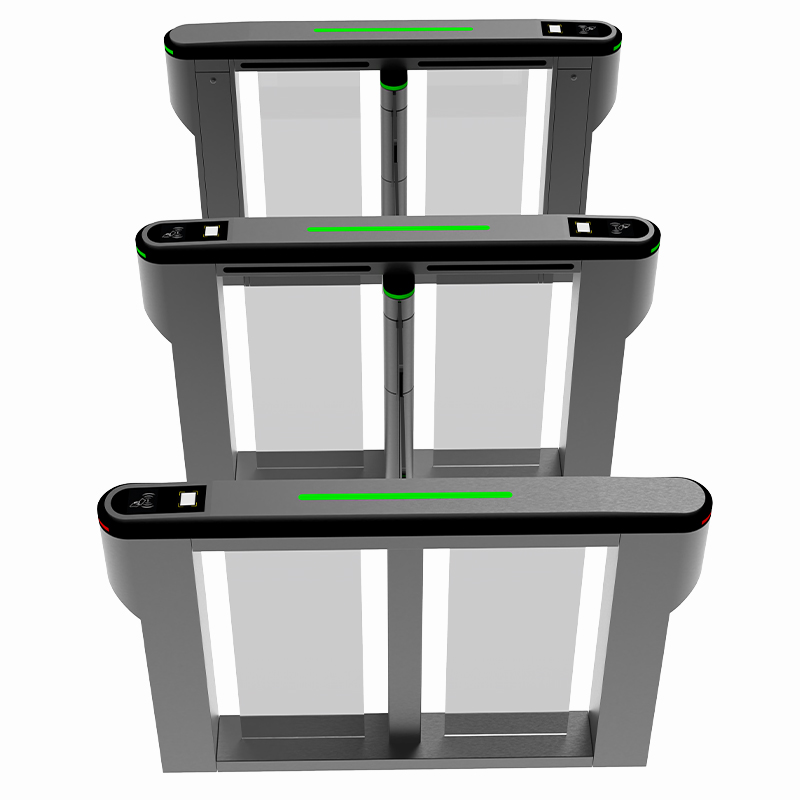

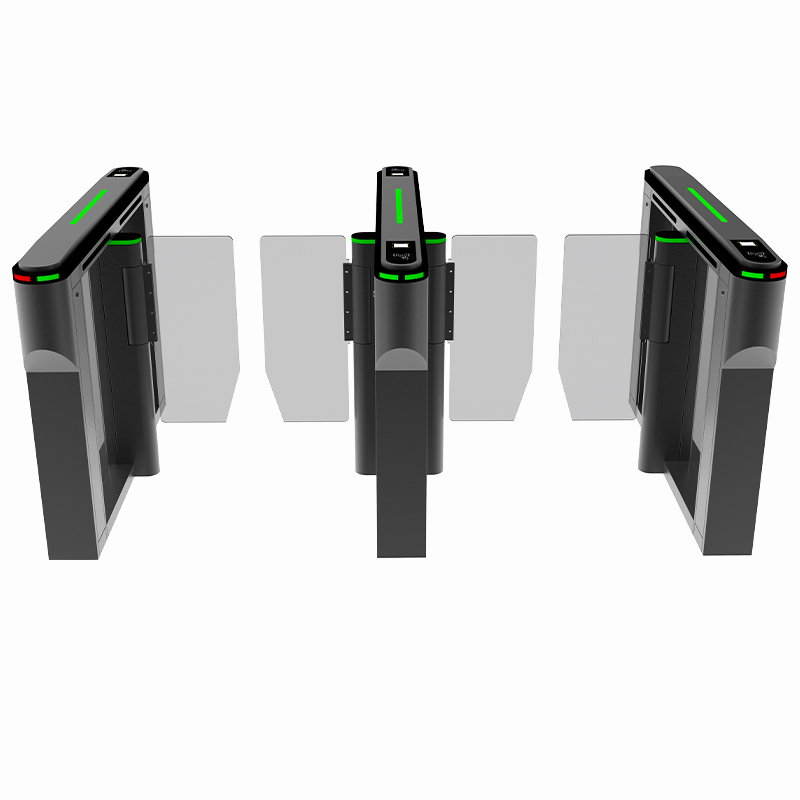

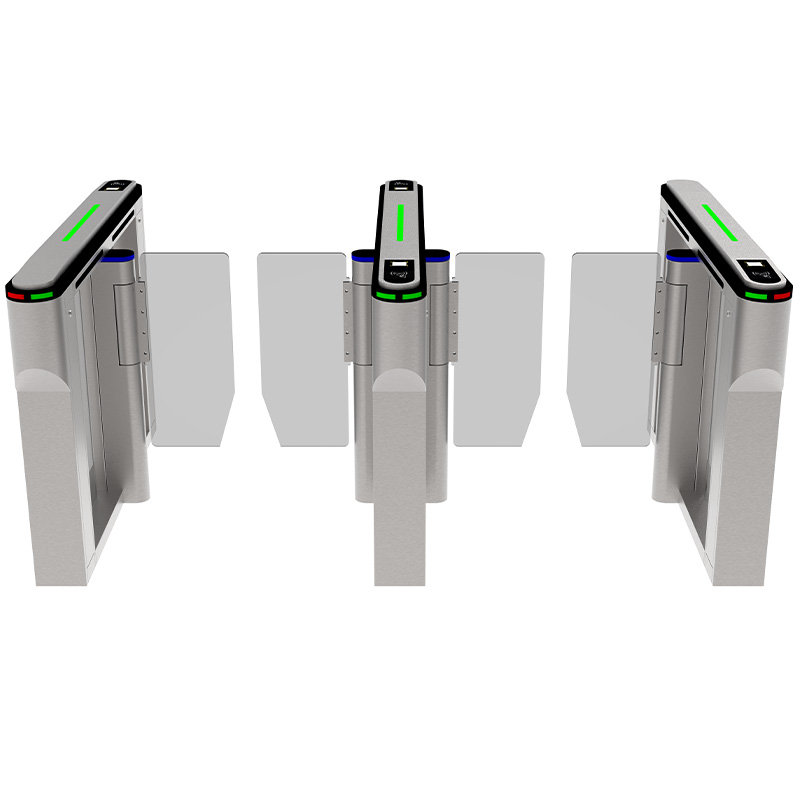

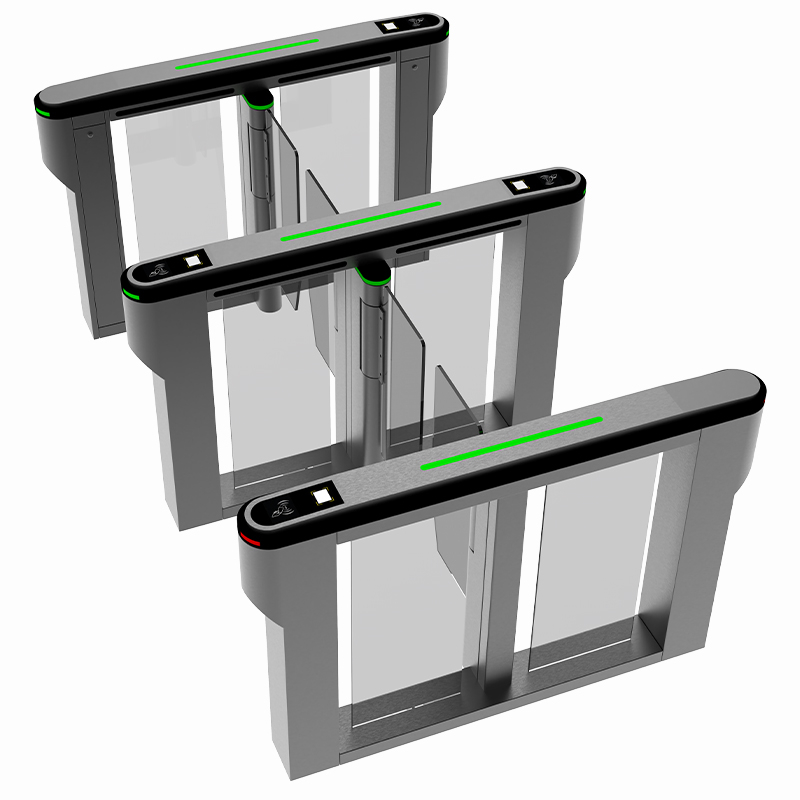

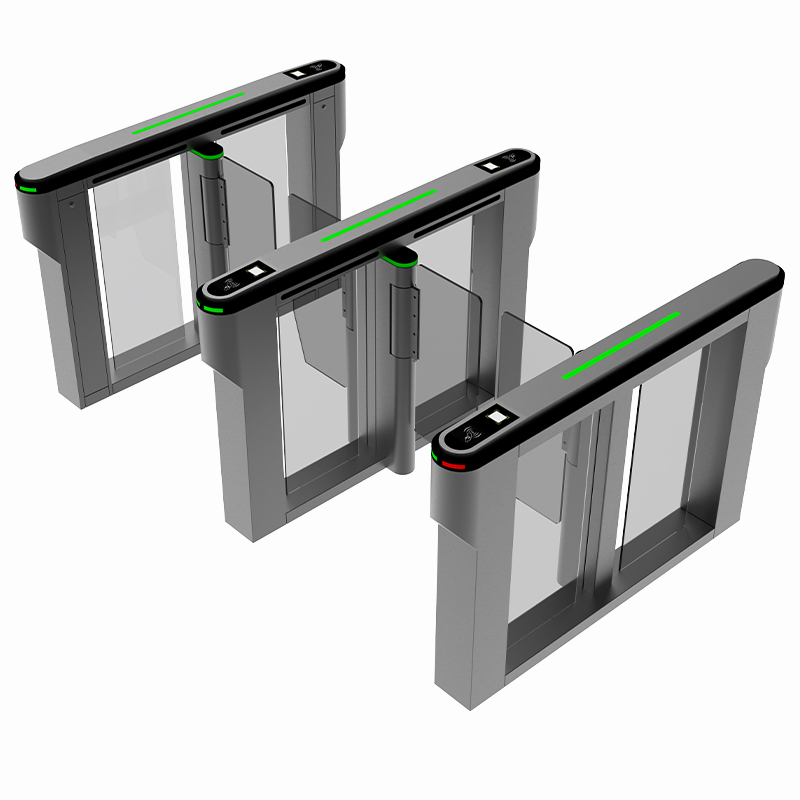

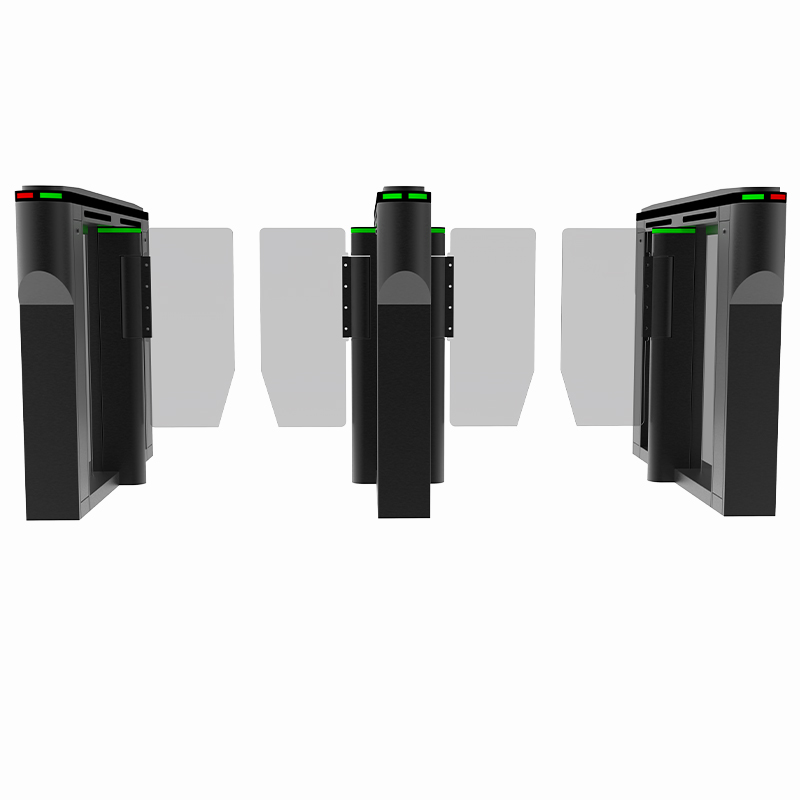

SERVO MOTOR LOBBY TURNSTILES SPEED GATE MT382
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1500*160*1000 mm
2. Material: 1.5 mm imported SUS 304; Polish 400# Snowline
3. Arm material: 10 mm Acrylic
4. Pass Width: 600 mm -900 mm
5. Passage direction: Single directional/Bi-directional
6. Pass rate: 30-35 persons/minute
7. Operating time: 0.2 seconds
8. Power input: AC100-240V,50/60HZ
9. Working voltage: 24V
10. Working humidity: 30%~95%
11. Working temperature: -40℃~+70℃
12. Working environment: Indoor
13. Input interface: RS485, Dry contact
14. Mechanism: Brushless servo motor+Clutch
15. Infrared sensor: 6 pairs
16. MCBF: 5,000,000 Cycles
17. Feature: Arm height can be customized
18. Application: Airports, Hotels, Government Halls, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
