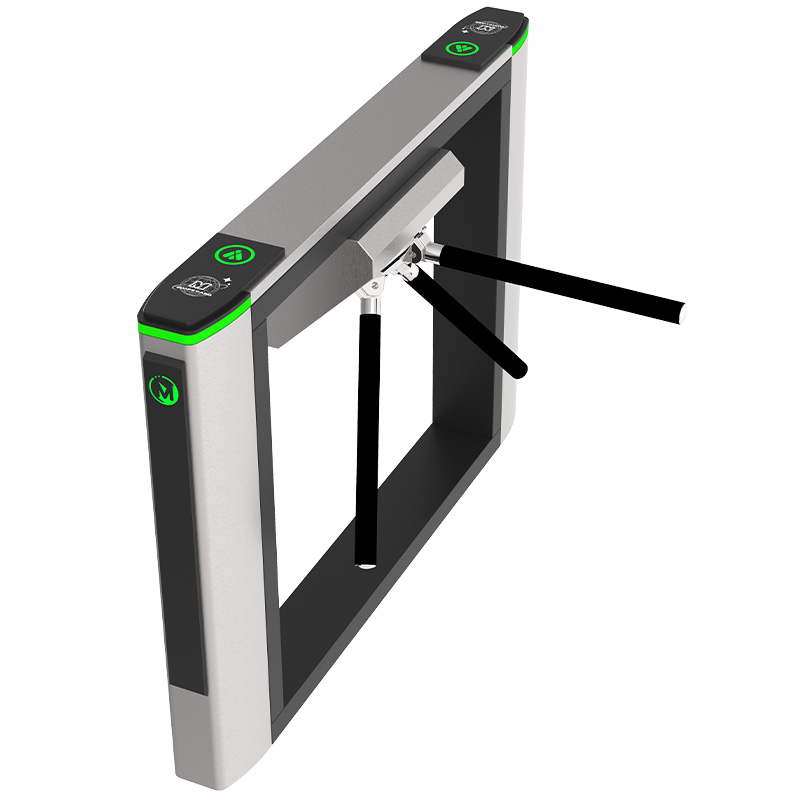

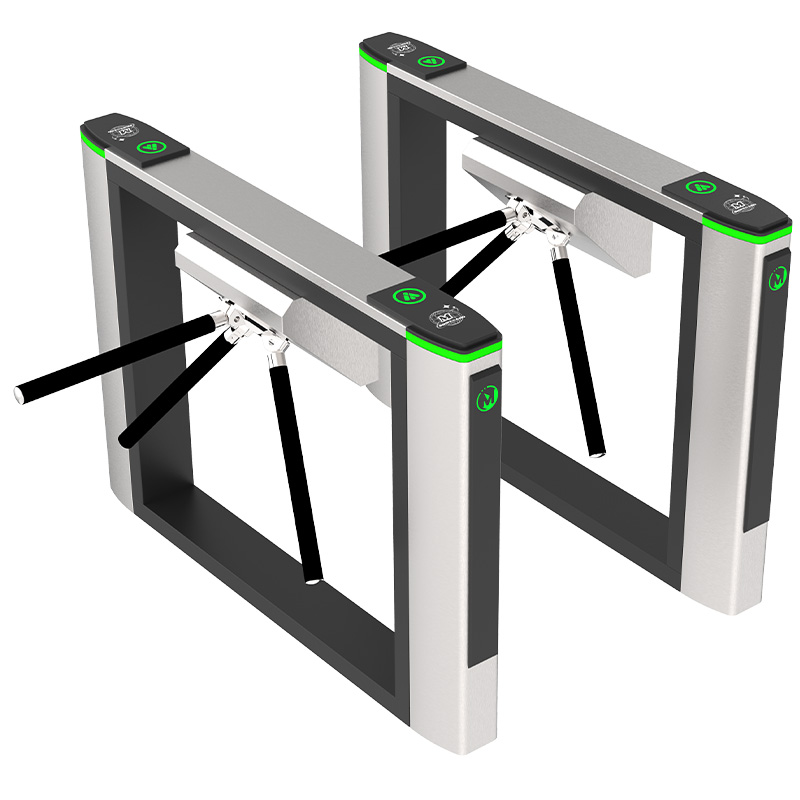

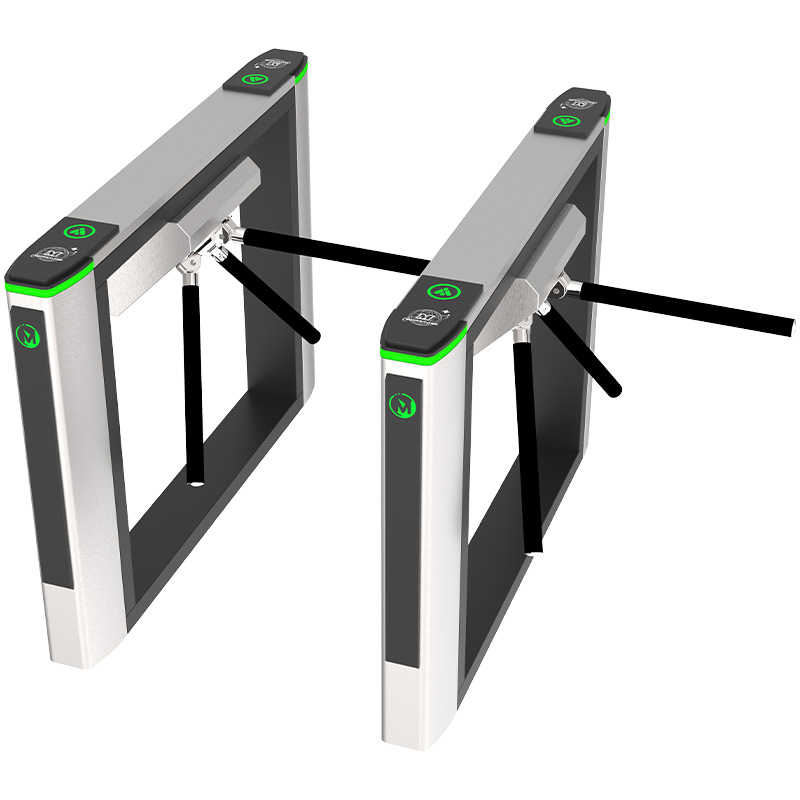

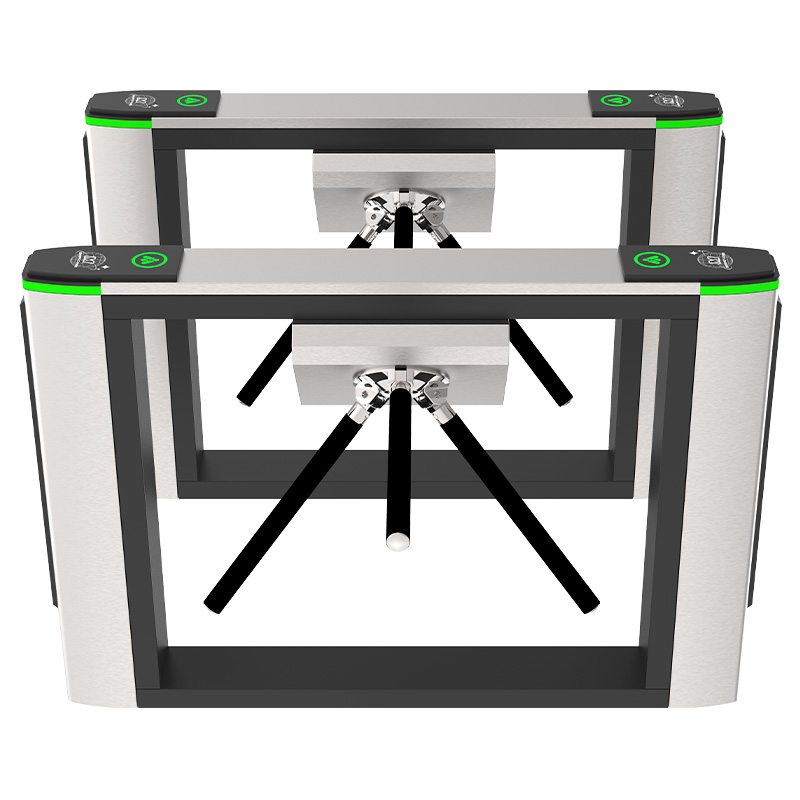

M series tripod turnstile MT100
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on a tripod turnstile for access control or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1420*250*990 mm (can be customized)
2. Lane width: 550 mm (can be customized)
3. Passing speed: 35 person/min
4. Power supply: 110V/220V 50/60Hz
5. Tripod turnstile for access control Weight: 60 kg
6. Gate Open Signal: Dry Contact/ Relay
7. Arm protective sleeve can be added
8. Mechanism with hydraulic damper for shock absorbing
9. Reliability of the mechanism: 3 million, no-fault
10. Operation way: Semi-automatic
11. Solenoid valve: DC24V ±5％
12. Arm length: 510 mm
13. Direction of rotation: Bidirectional/single direction
14. Emergency exit: drops automatically when the electricity is cut off.
15. Operational voltage: DC 24V ±5%
16. Voltage of indicator light: DC12V ±5％(standard)
17. Working temperature: -30℃～60℃
18. Humidity: 5%～90%
19. Waterproof: IP56
20. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
21. Time needed for opening: 0.2 s
22. Working environment: Indoor or outdoor
23. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
