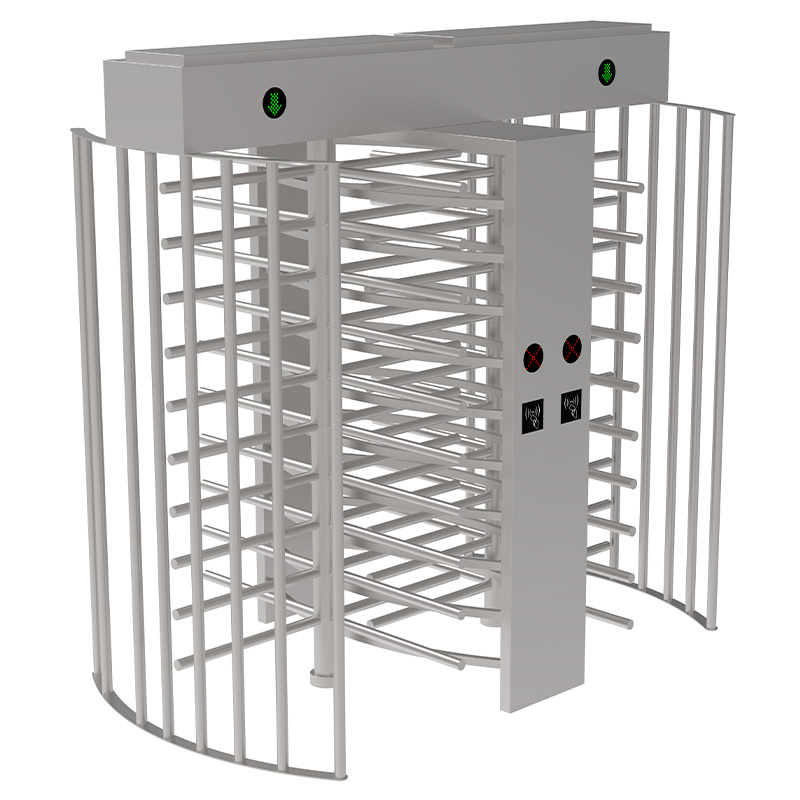

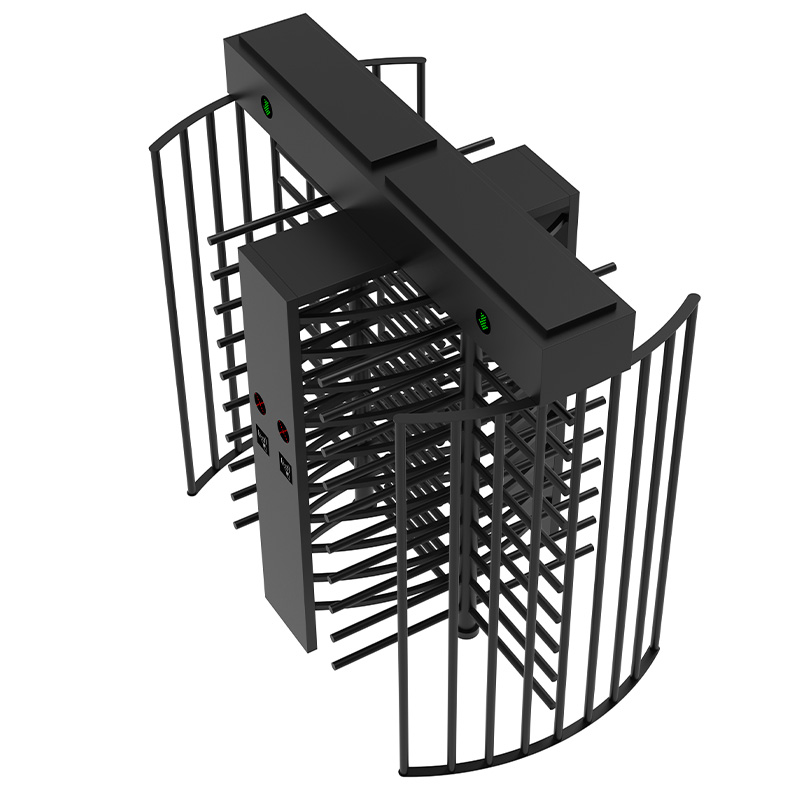

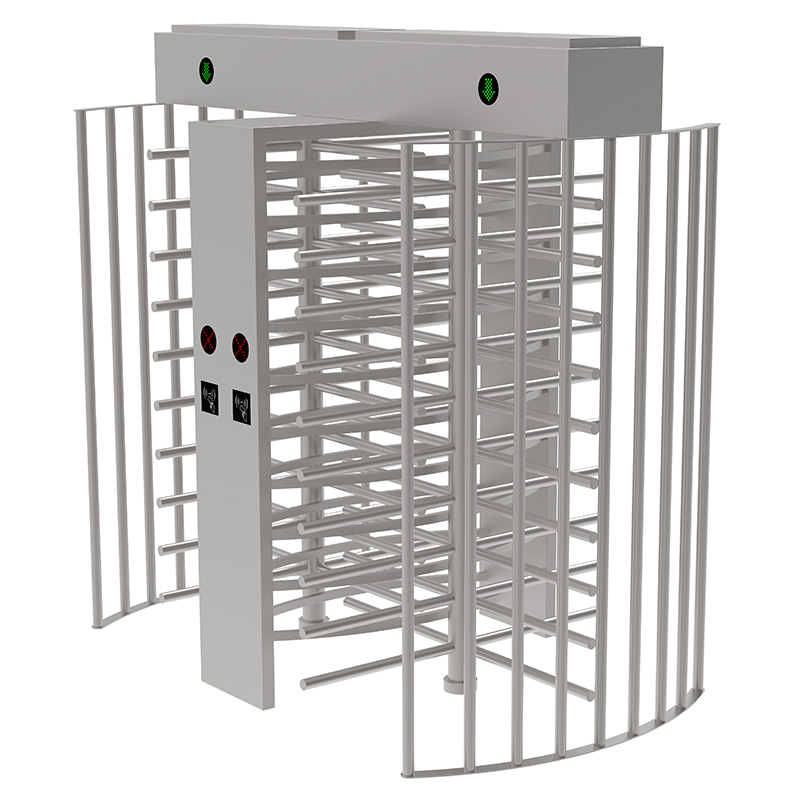

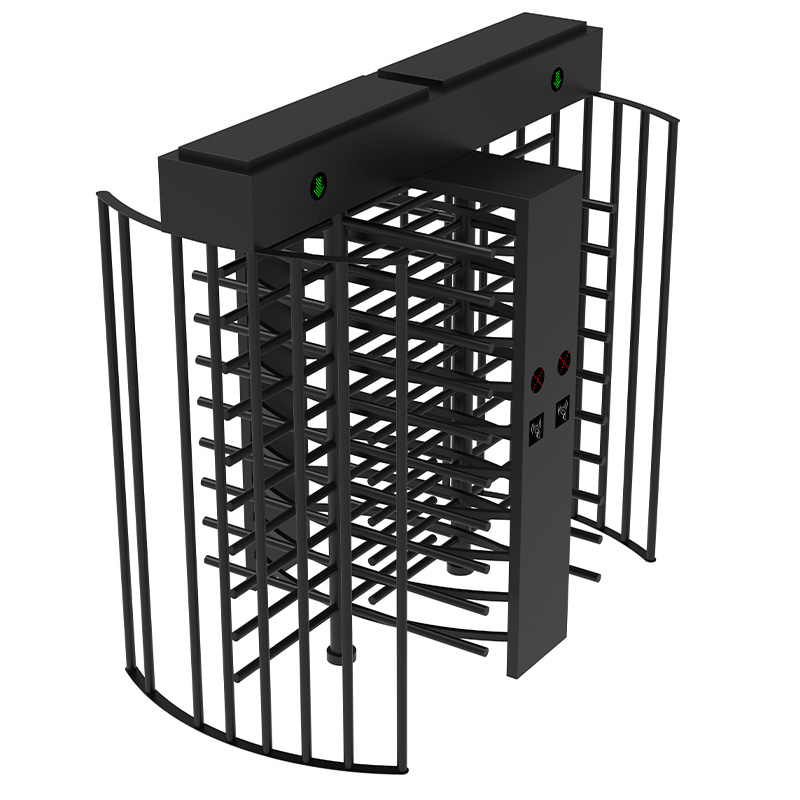

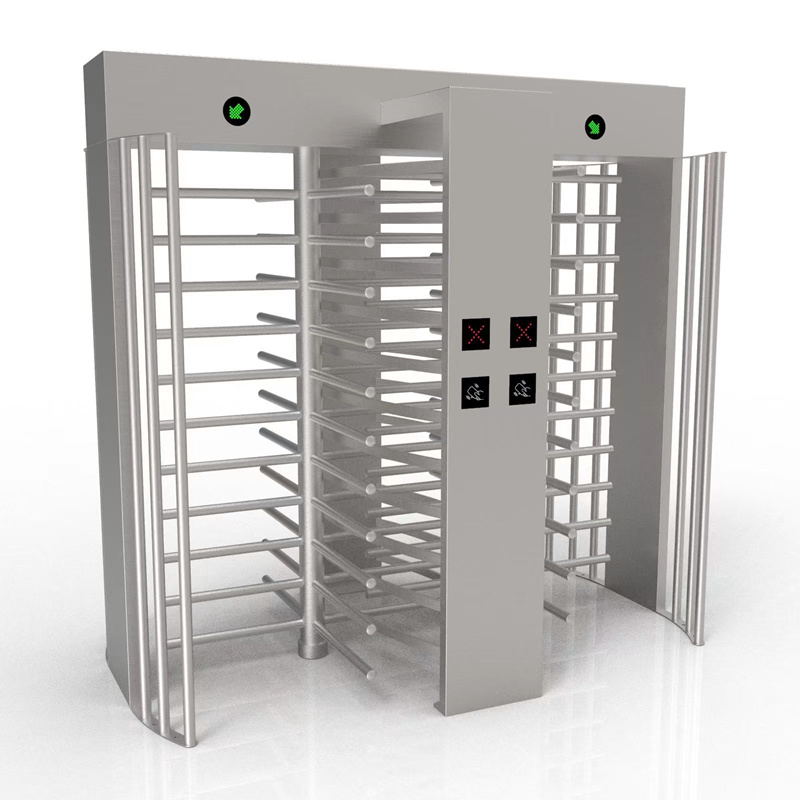

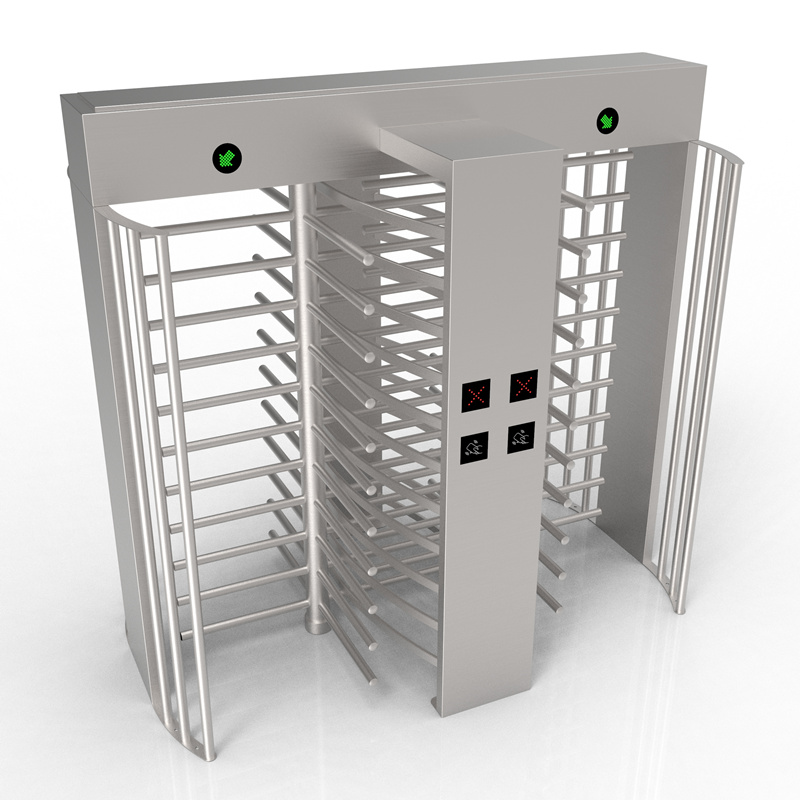

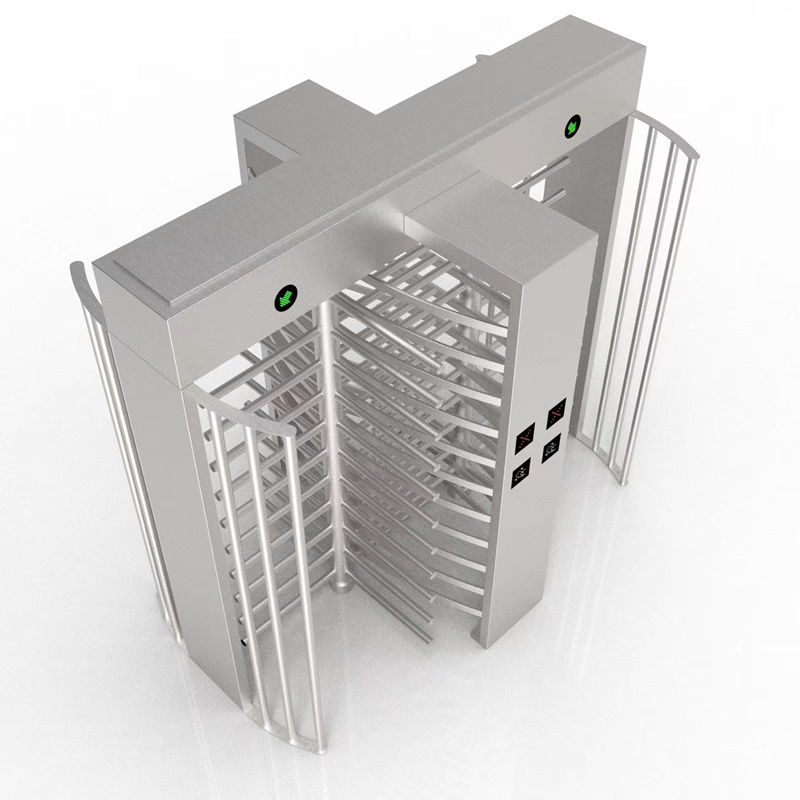

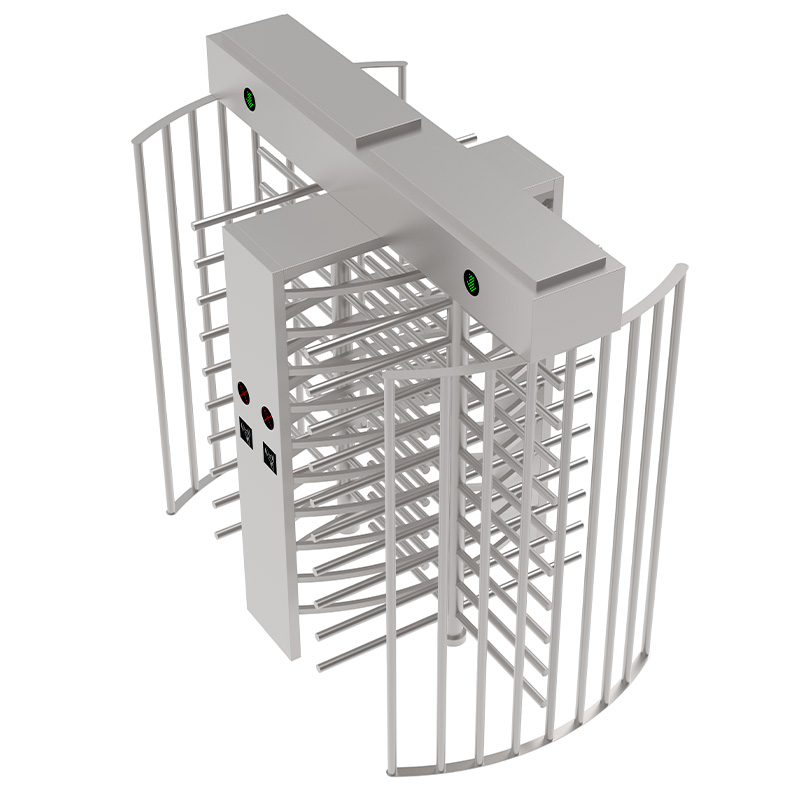

DOUBLE LANE SS FULL HEIGHT TURNSTILES MT403-1
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 2400*1500*2310 mm (can be customized)
2. Lane Width: 650 mm (can be customized)
3. Passing speed: 30 person/min
4. Power supply: 110V/220V 50/60Hz
5. Solenoid: DC24V
6. Gate Open Signal: Dry Contact/ Relay
7. Logic Voltage: DC24V
8. Casing Material: 304 stainless steel
9. Reliability of the mechanism: 5 million, no-fault
10. Mechanism with hydraulic damper for shock absorbing
11. Drive: Semi-automatic Operated
12. Arm Length: 610 mm
13. Direction of rotation: Bidirectional
14. Emergency situation: In the event of an emergency or isolation of the power supply the Rotating Door can be configured to Fail-Safe i.e.rotates freely or Fail-Lock
15. Humidity: ≤95%
16. Working temperature: -25℃~60℃
17. Optional Features: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
18. Communication distance: ≤1200 m
19. Communication interface: RS485
20. Size can be customized
21. Time needed for opening: 0.2 s
22. Working Environment: Indoors or outdoors(outdoor is optional)
23. Application range: Community, Factory, Construction site, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
