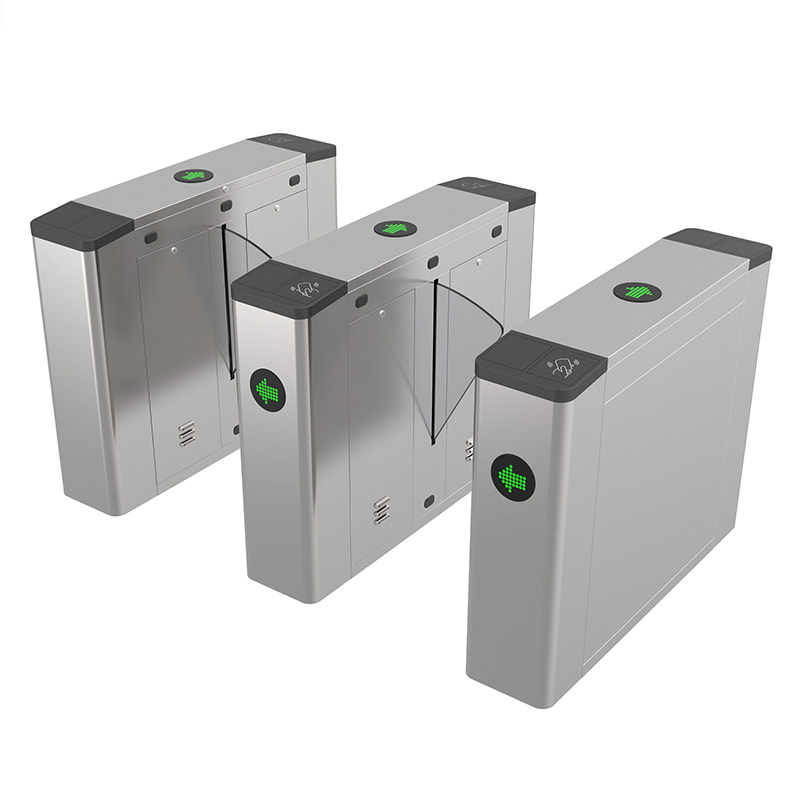

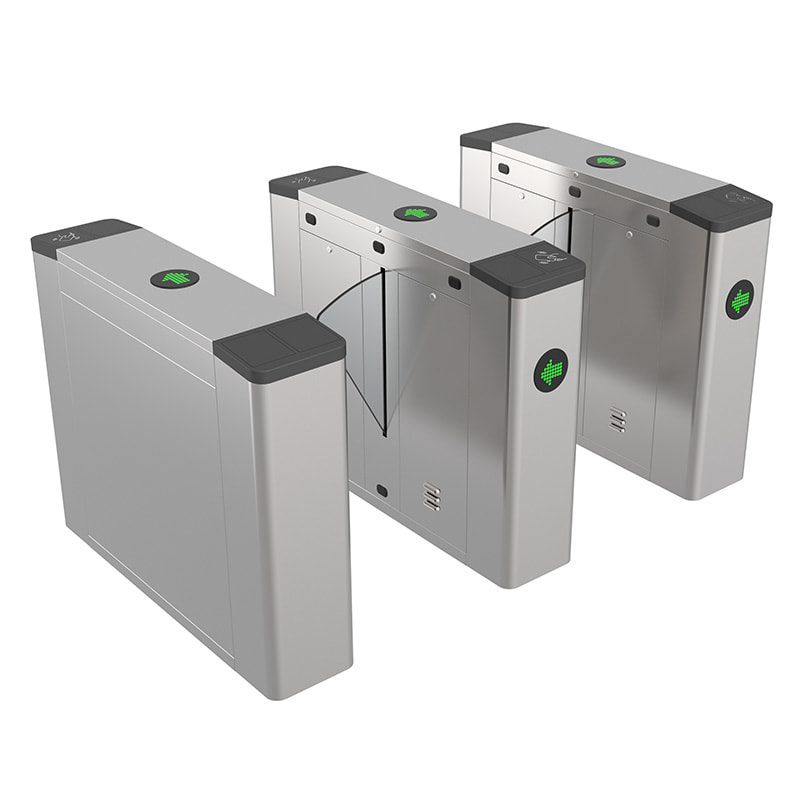

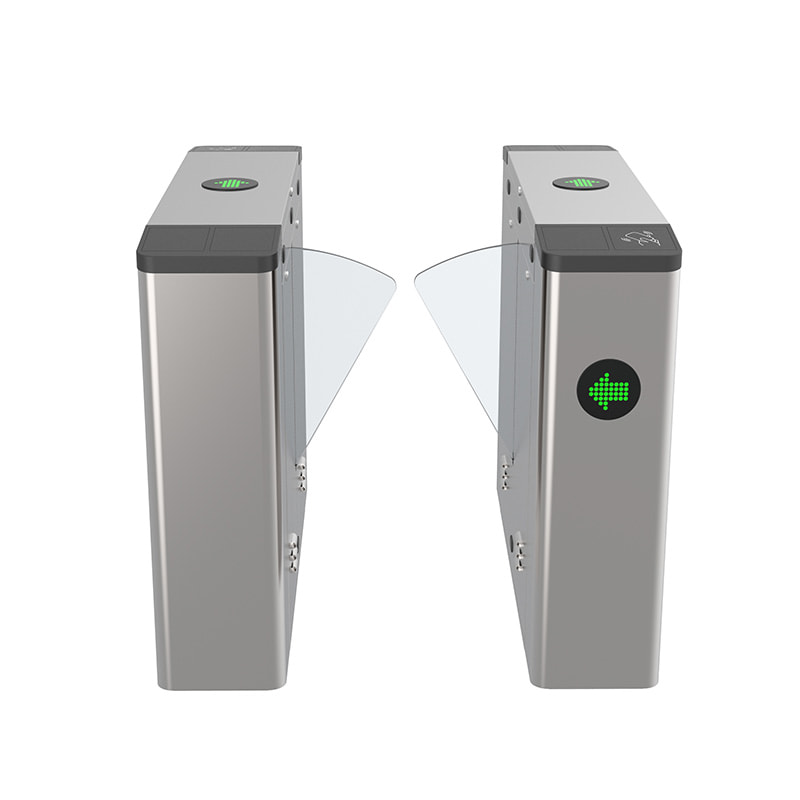

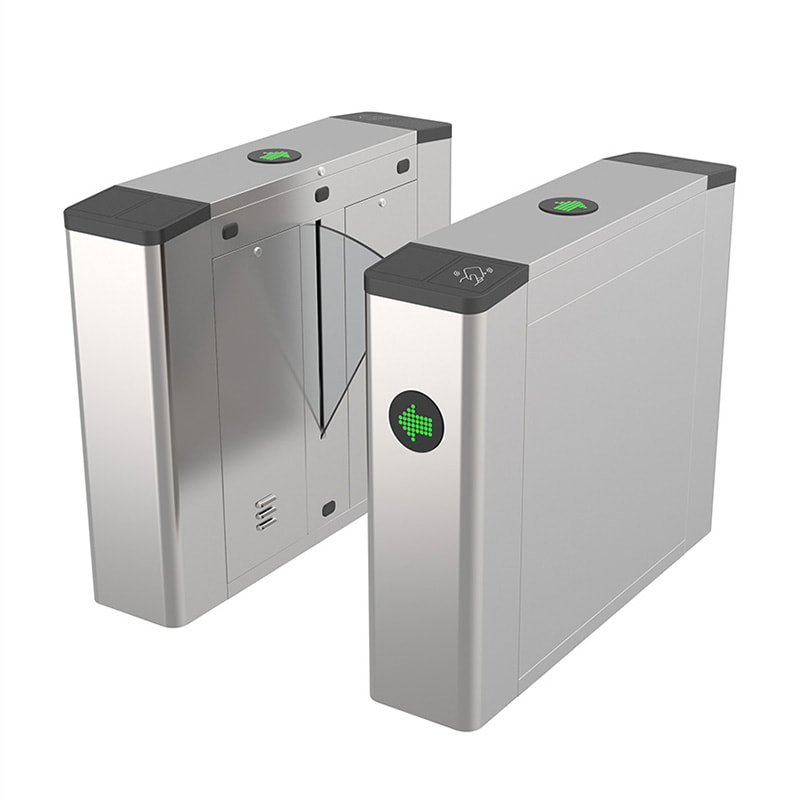

FLAP TURNSTILE BARRIER GATE MT225
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile barrier or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 1200*300*980 mm
2. Material: 1.0 mm SUS 304 Hairline 400#+Top Cover 1.2 mm SUS304
3. Arm material: PC board
4. Pass Width: Standard 550 mm
5. Passage direction  Single directional/Bi-directional
6. Pass rate: 30-35 persons/minute
7. Operating time: 0.2 seconds
8. Power input: AC100-240V,50/60HZ
9. Turnstile barrier Working voltage: 24V
10. Working humidity: 30%~95%
11. Working temperature: -40℃~+70℃
12. Working environment: Indoor
13. Input interface: RS485, dry contact relay
14. Mechanism: Brushed motor 35W
15. Infrared sensor: 4 pairs
16. MCBF: 5,000,000 Cycles
17. Application: Bus station, Hotels, Government Halls, School, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
