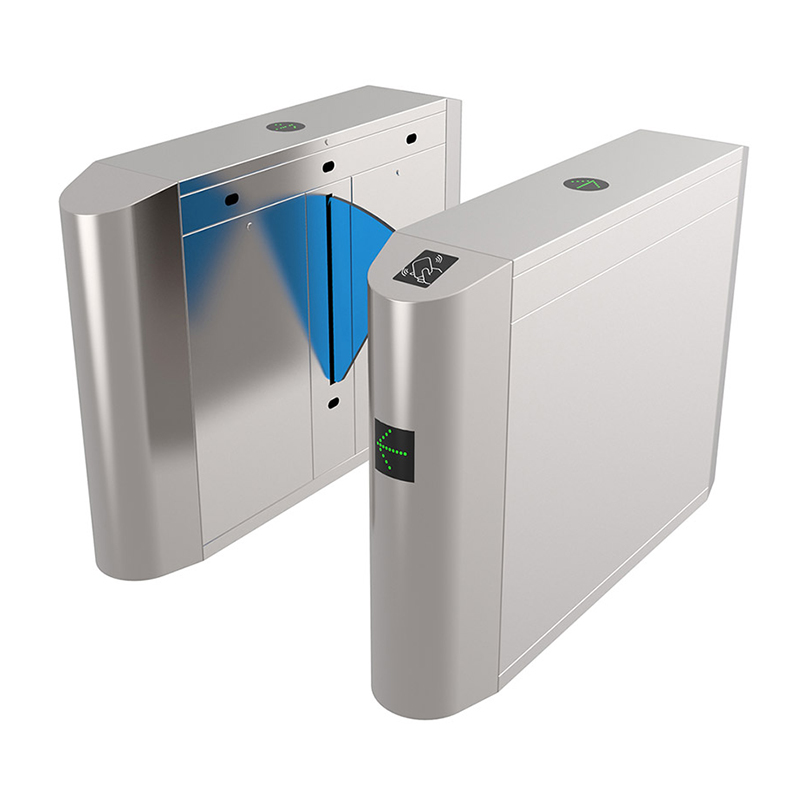

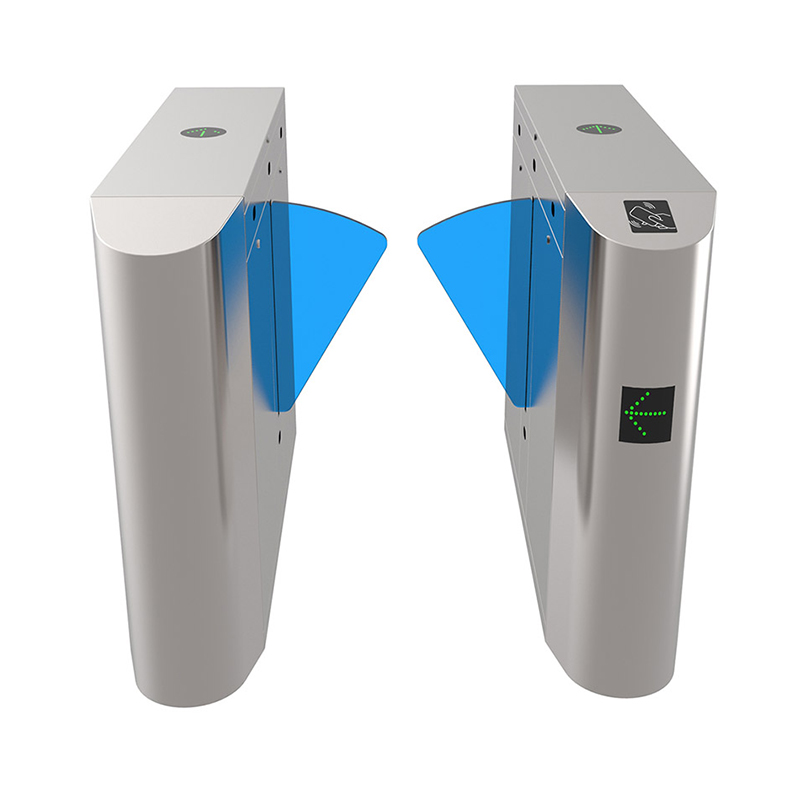

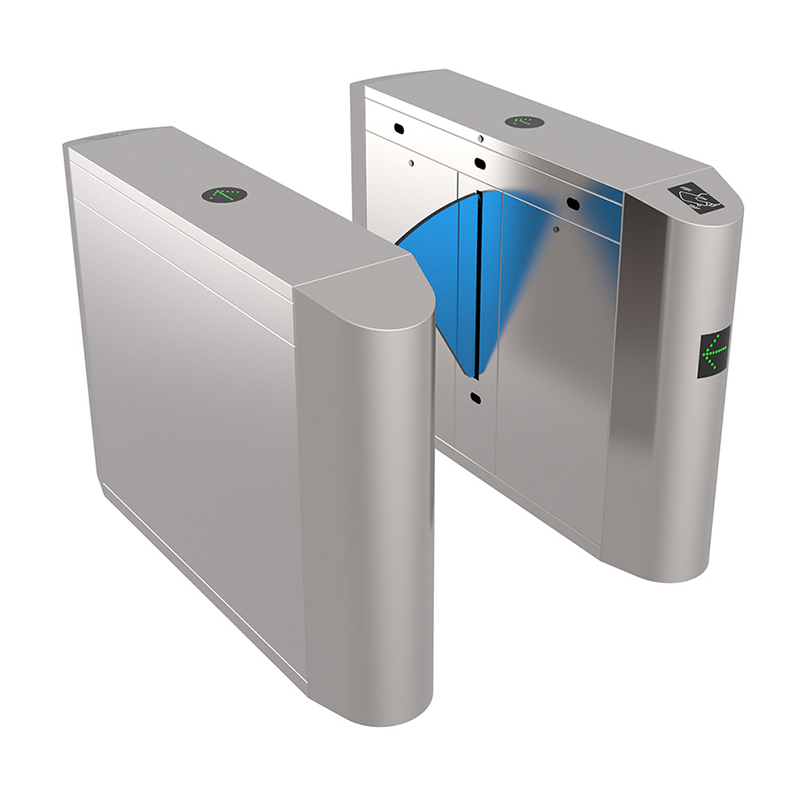

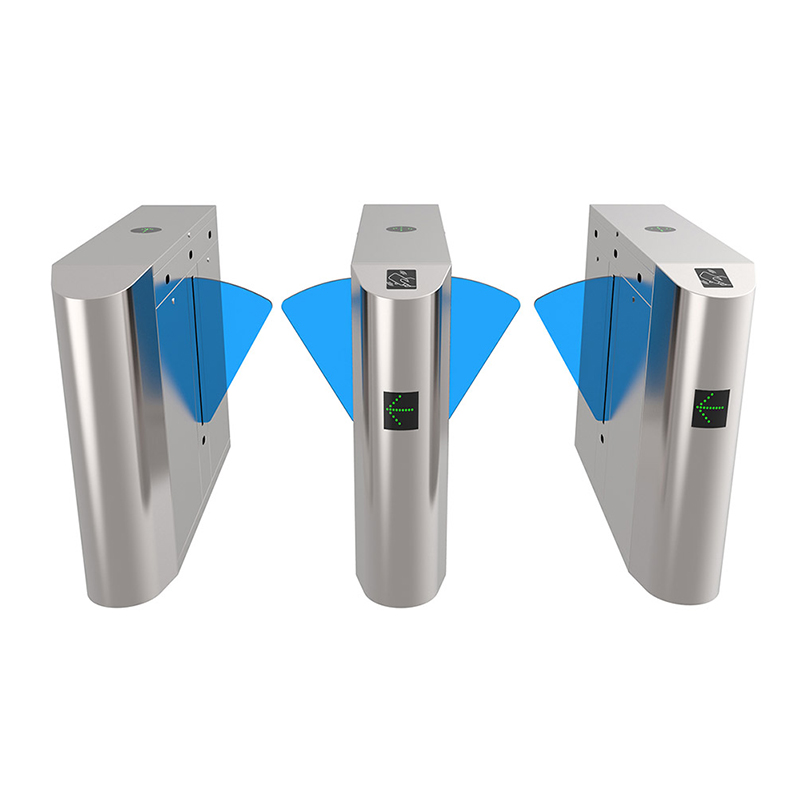

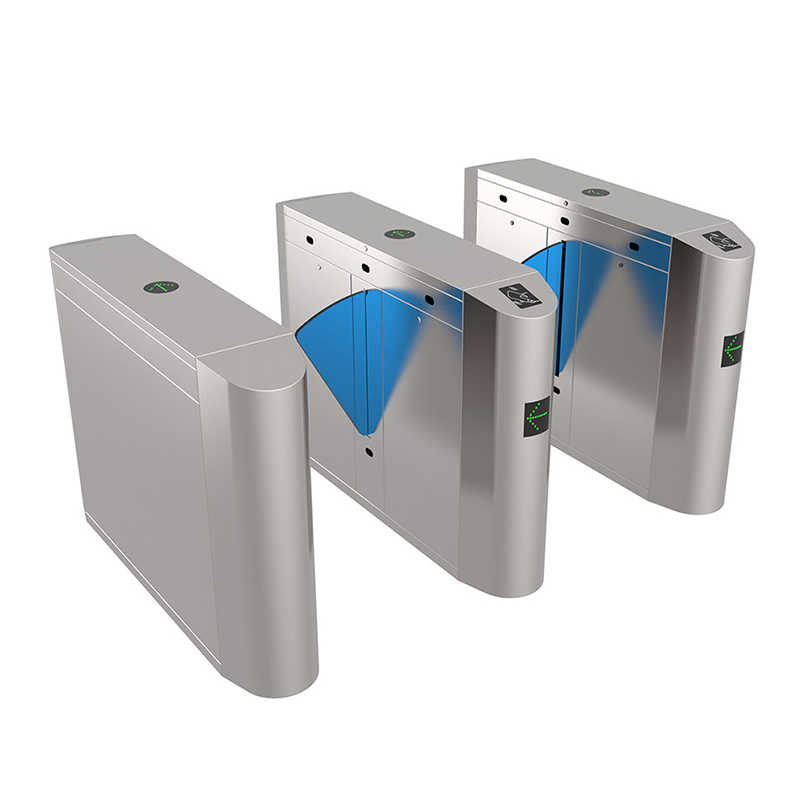

TURNSTILE FLAP BARRIER GATE MT258

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please request a quote.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.

Technical Parameter:

1. Size: 1400*300*980 mm (can be customized)
2. Lane width: 550 mm (can be customized)
3. Passing speed: 40 person/min
4. Power supply: 110V/220V
5. Driving Motor: 20W
6. Gate Open Signal: Dry Contact/ Relay
7. Driving Motor: DC24V
8. Weight: 60 kg/pcs
9. Casing Material: 304 stainless steel
10. Reliability of the mechanism: 3 million, no-fault
11. Flap arm material: Acrylic
12. LED lights on arms is available
13. Lane width: 550 mm
14. Working Direction: Bidirectional/Single directional
15. Emergency situation: open automatically when the electricity is cut off. Backup battery self-provided
16. Humidity: ≤90%
17. Working temperature: -20℃~60℃
18. Communication distance: ≤1200 m
19. Communication interface: RS485
20.  Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
21. Time needed for opening: 0.2 s
22. Working environment: Indoors
23. Application range: Community, Factory, Construction site, School, Place of the resort, etc

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
