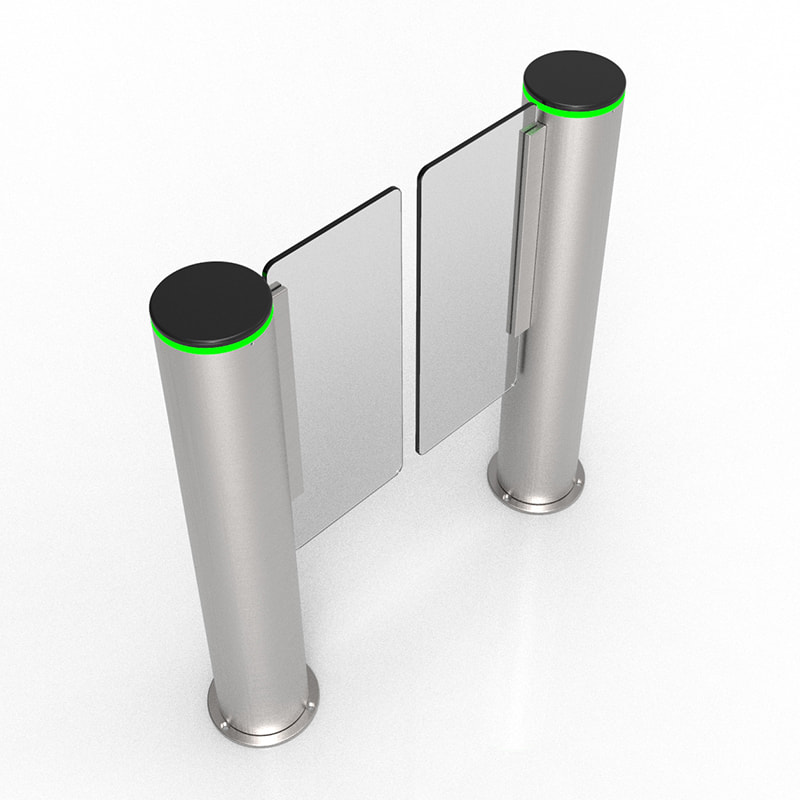

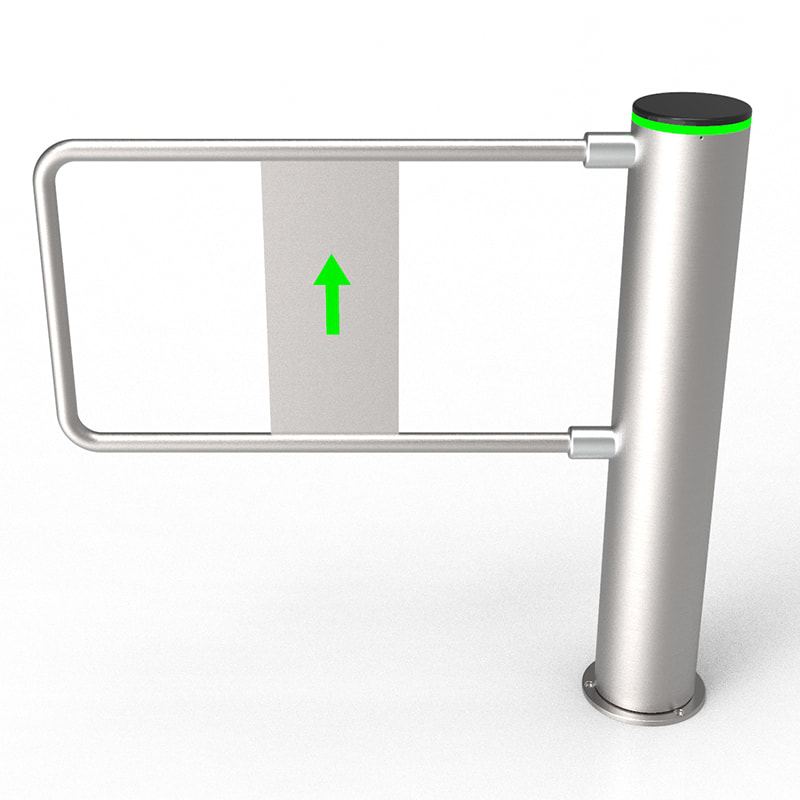

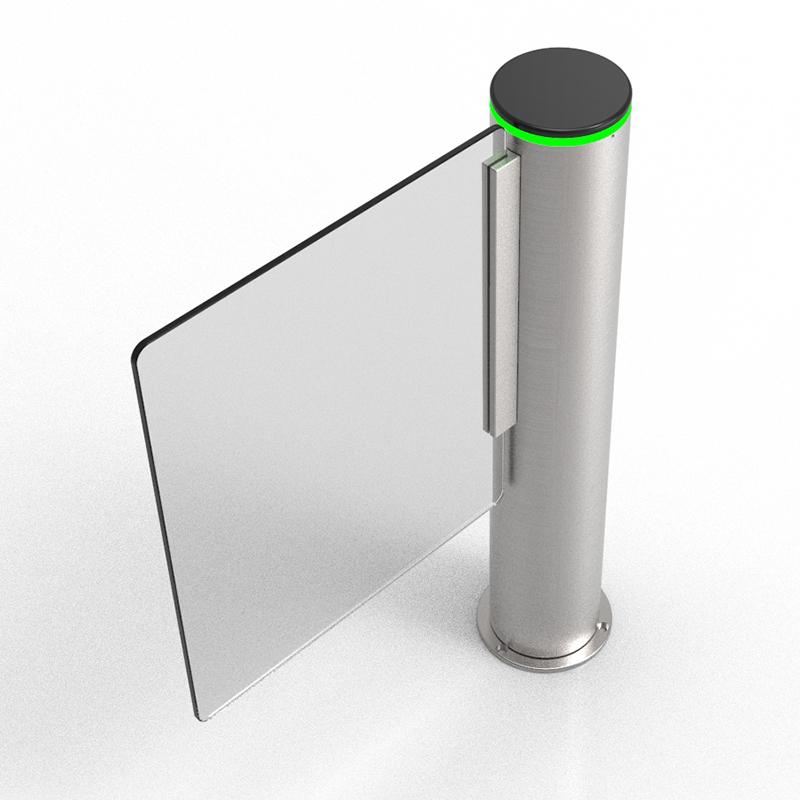

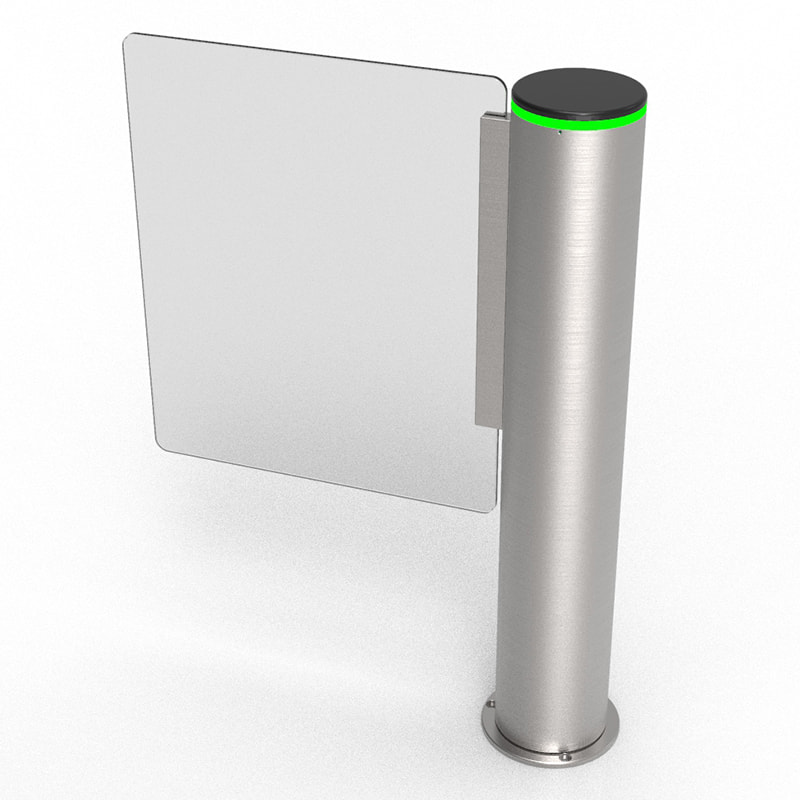

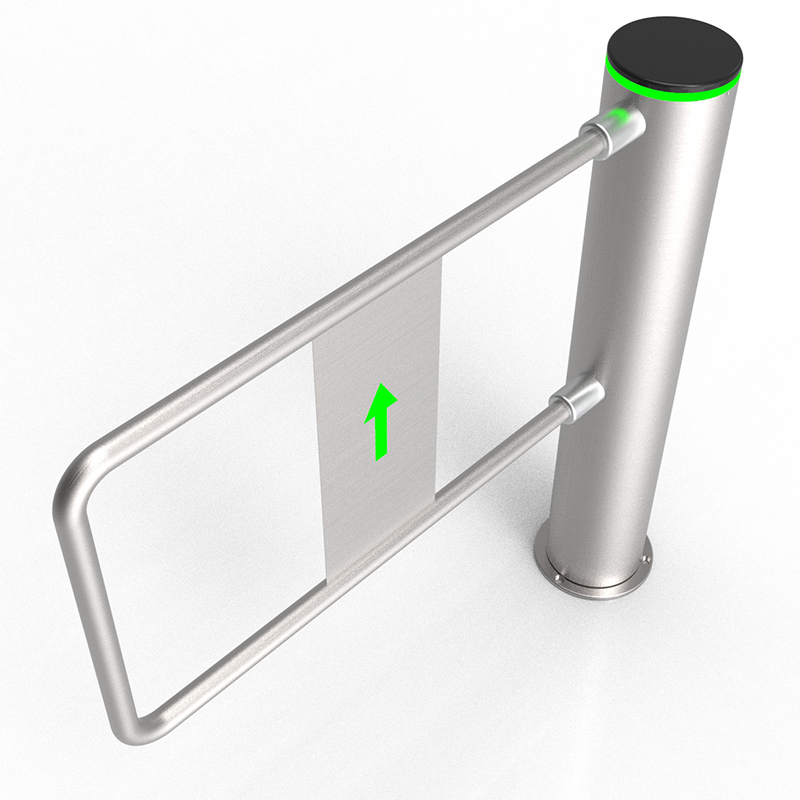

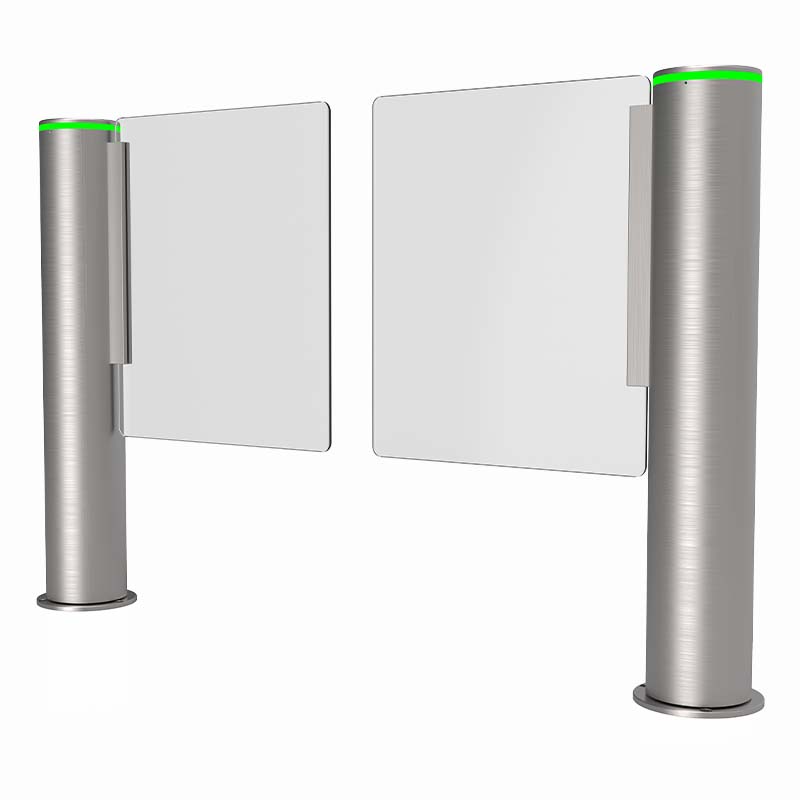

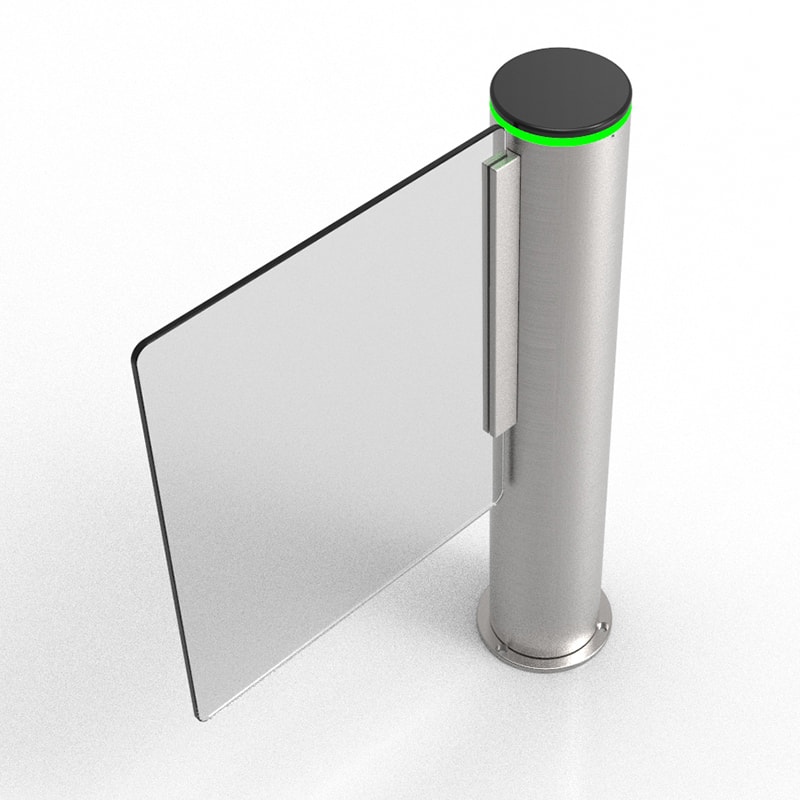

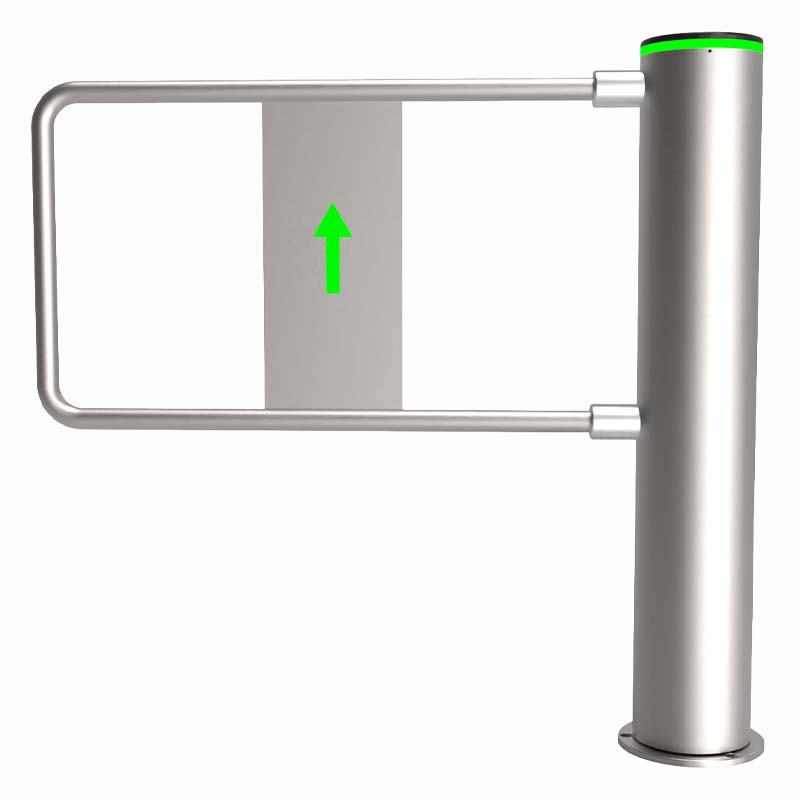

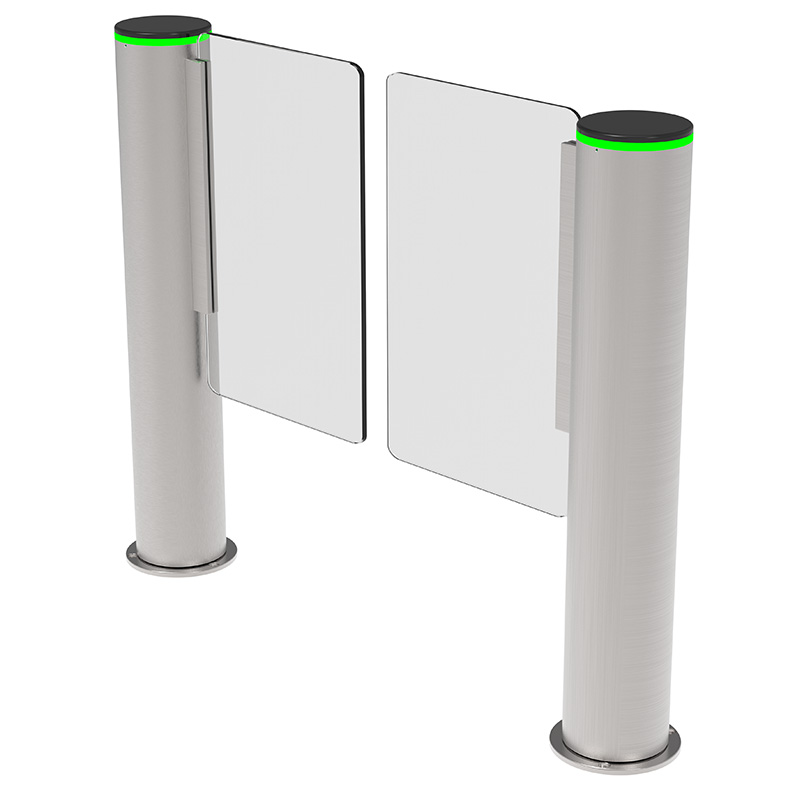

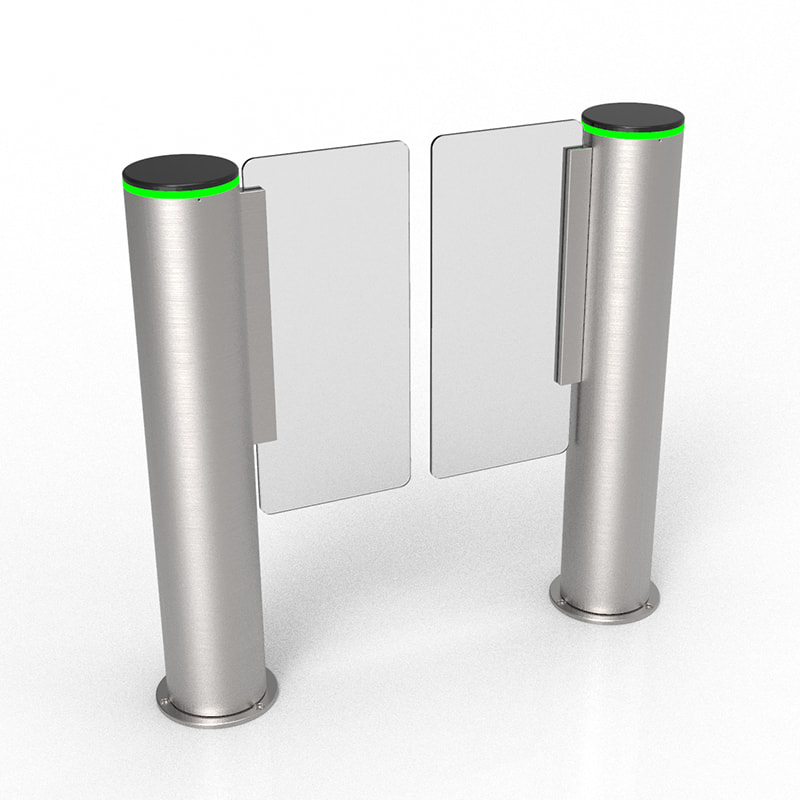

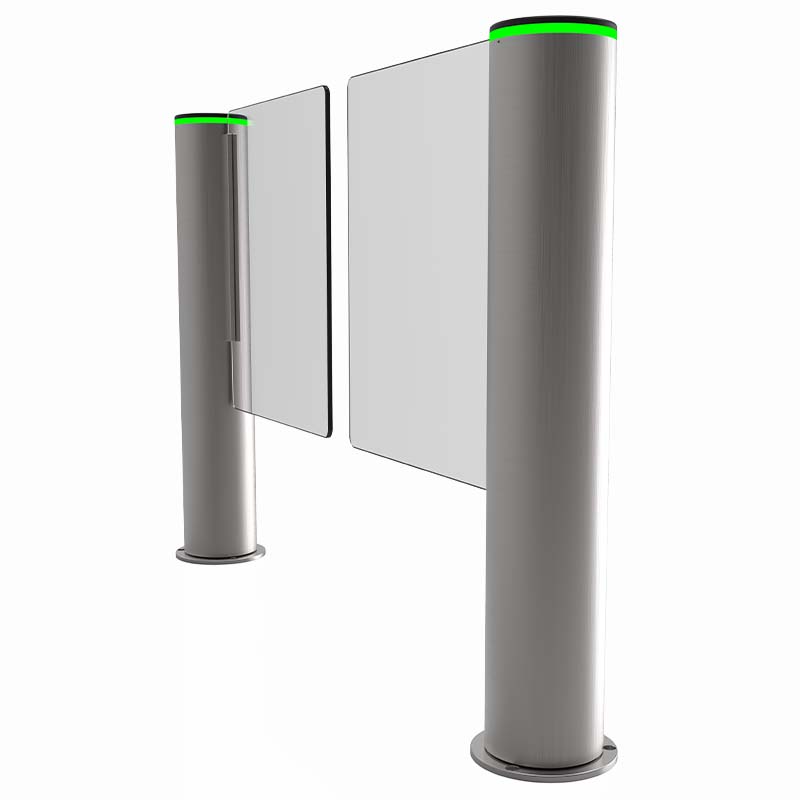

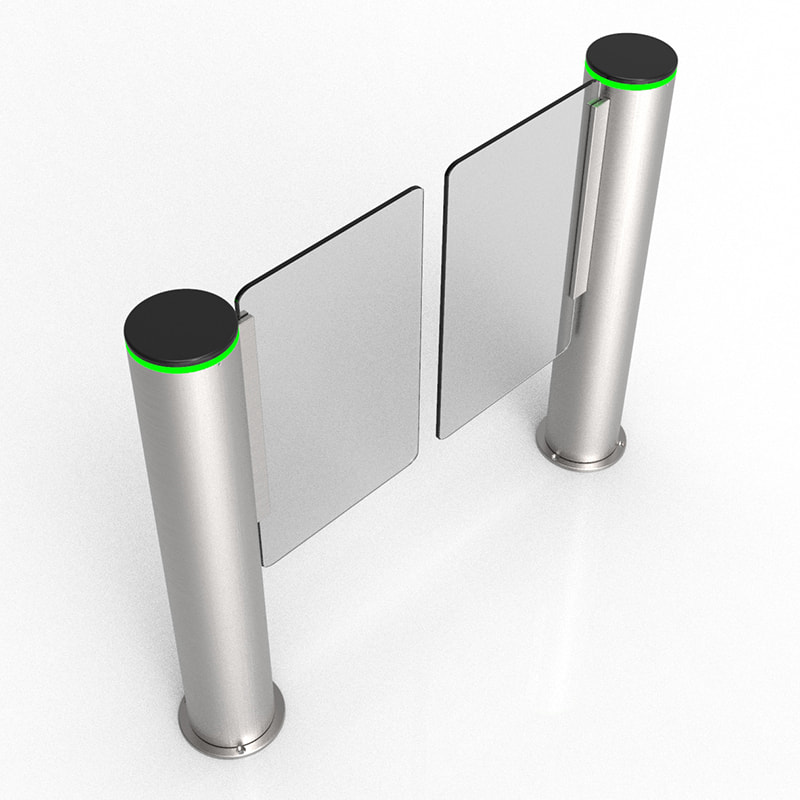

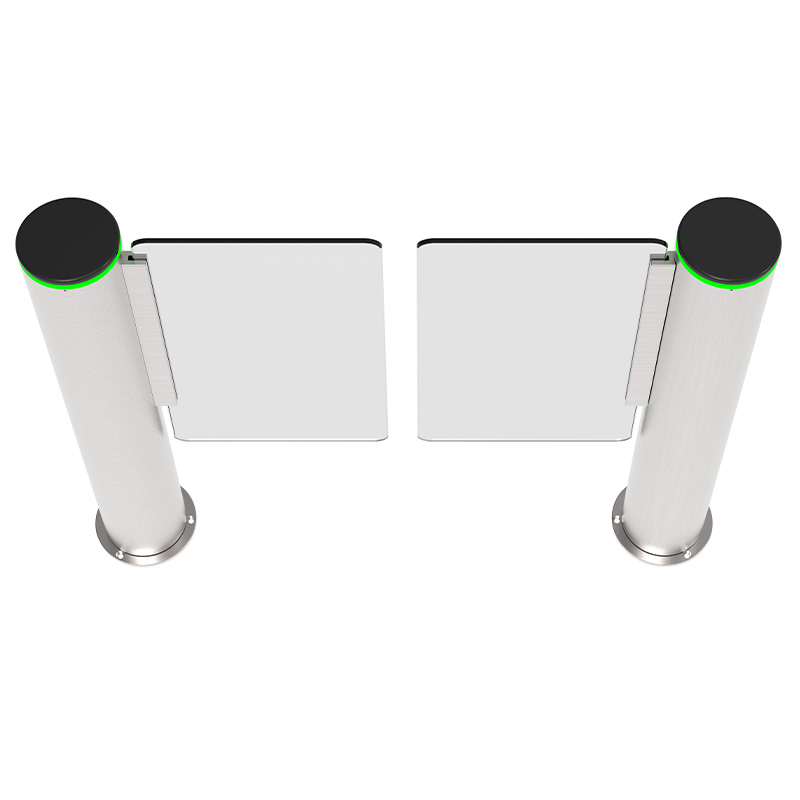

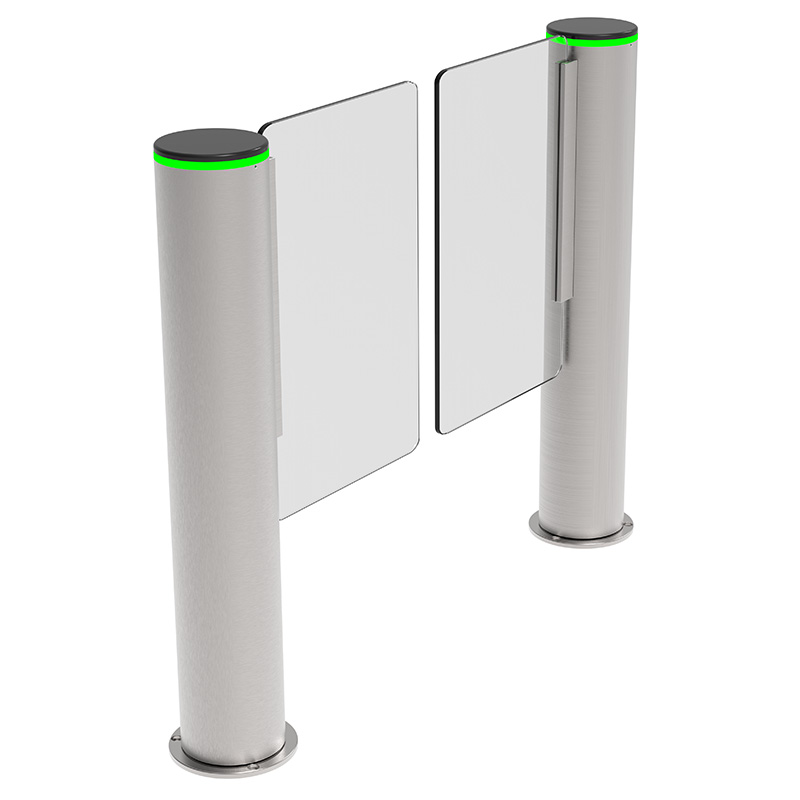

SERVO MOTOR TURNSTILE SWING GATE MT310
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.
All of our products carry a 2 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanners, and face recognition cameras. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile swing gate or have any questions, please request a quote.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings. Let you have no worries about installation. Please download our corresponding PDF file for specific dimensions and installation dimensions.
Technical Parameter:
1. Size: 168*1050 mm (can be customized)
2. Standard lane width: 600 mm
3. Servo motor
4. Power supply: 110V/220V 50/60Hz
5.  Arm material: Acrylic or tempered glass
6. Max pass width: Acrylic-900 mm or tempered glass-800 mm
7. Driving Motor: 24V
8. Weight: 30kg/pcs
9. Gate Open Signal: Dry Contact/ Relay
10. Casing Material: 304 stainless steel
11. Reliability of the mechanism: 5 million, no-fault
12. LED lights on arms is available when the acrylic arm is used
13. Working Direction: Bidirectional/Single directional
14. Emergency situation: open automatically when the electricity is cut off. Backup battery self-provided
15. Turnstile swing gate humidity: ≤90％
16. Working temperature:-20℃～60℃
17. Communication distance: ≤1200 m
18. Communication interface: RS485
19. Anti-hit mechanism, automatically reset when encounter force impact
20. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
21. Time needed for opening: 0.2 s
22. Working environment: Indoors
23. Application range: Community, Factory, Office Building, School, Place of the resort, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
